100-114-00 125W DC/DC menič 13-30V Input; dual output 12V/5A + 5V/5A
  • dual výstup 12V/5A + 5V/5A
  • malý rozmer
  • široký vstupný rozsah 13 až 30VDC
  • bez ventilátorové riešenie
  • navrhnutý pre priemyselné použitie
  • dizajn made in Slovakia
  • výrobené na Slovensku
  • 24/7

Producer Q-PRODUCTS a. s.
Input 13 to 30VDC
Output 60W 12V/5A + 25W 5V/5A simultaneously
Performance Characteristics

Noise & Ripple: <100mV
Efficiency for 12V output:

Uin=13V;Iout=1A; Eff=83%

Uin=13V;Iout=5A; Eff=97%

Uin=24V;Iout=1A; Eff=92%

Uin=24V;Iout=5A; Eff=96%

Uin=30V;Iout=1A; Eff=90%

Uin=30V;Iout=5A; Eff=95%



Note:

Efficiency for 5V output is similar to efficiency for 12V output.

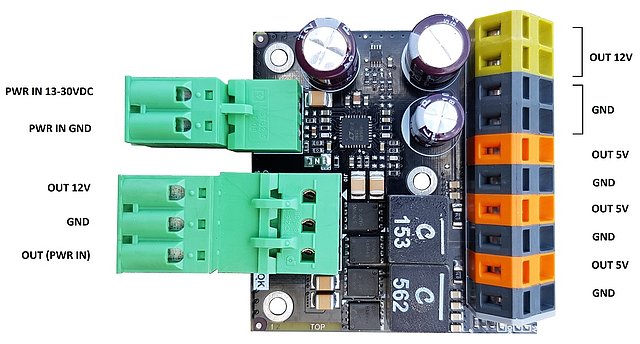

Connectors

Input connector: Phoenix Contact 1757242, 2x Male 5.08mm pitch, rated 12A

Mating connector: Phoenix Contact 1873058, 2x Female 5.08mm pitch, rated 12A



Output connector: Phoenix Contact 1786417, 3x Female 5.08mm pitch, rated 12A

Mating connector: Phoenix Contact 1873362, 3x Male 5.08mm pitch, rated 12A



Output terminal block: Wago 236-747, accept wires AWG12 to AWG28

Operating temperature -25º C to +85ºC
Dimmensions 56(W) x 53(L) x 17(H) mm
Mounting holes 3, diameter 3.2mm
Weight 41g





Info pre objednávky:



100-114-00 125W DC/DC menič 13-30V Input; dual output 12V/5A + 5V/5A
