Industrial PC 1U AT/ATX AC/DC Input napájacie zdroje
|
||
|
||
|

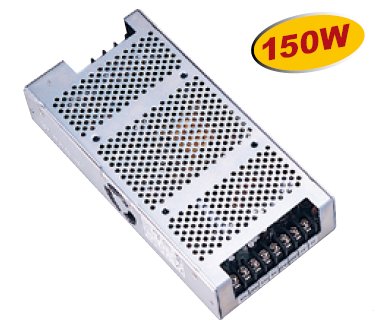

ACE-716C 1U 150W 24V DC input AT Power Supply
- 100% Meet RoHS Compliance
- Full functional over voltage / current protection
- Multiple safety / EMC certificated
- Power 150 W
|
Input Type |
19 ~ 30 VDC | |||||
|
Output Voltage |
+5 V |
+12 V | -5 V | -12 V | +24 V | |
| 18 A (2 A min) | 4 A | 0.5 A | 1 A | |||
| Efficiency |
70% | |||||
| Temperature |
Operating : -20 ˚C~ 70 ˚C (50 ˚C~ 70 ˚C derating curve) Storage : -20 ˚C~ 85 ˚C | |||||
| MTBF (hrs) | 210,000 | |||||
| Output Connector |
Optional Cable | |||||
| Dimensions |
198 x 97 x 40.5 mm | |||||
Ordering Information:
ACE-716C-RS 150 W 24 V DC input AT Power Supply
ACE-716C_Datasheet.pdf (257kB)
