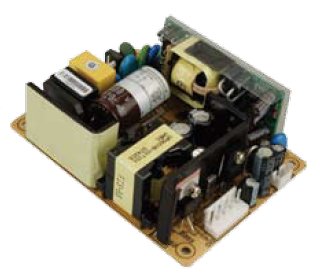

ACE-A406A 60 W AC-DC ATX open frame power supply
Safety (ITE Stardanrd) - CB IEC 60950, UL 60950, CSA C 22.2 No. 60950, TUV EN 60950
Safety (Medical Stardard) - CB IEC 60601, UL 60601, CSA C 22.2 No. 60601, TUV EN 60601
EMI - Meets EN 55022, FCC Part 15, CISPR 22. Meets EN 61000-3-2, EN 61000-3-3 (PFC function)
EMS - Meets EN 55024, EN 61000-4-2/ 3/ 4/ 5/ 6/ 8/ 11
|
Input Type |
90~264 VAC Full Range | ||||||
| Input Frequency |
47 Hz ~ 63 Hz | ||||||
|
Output Voltage |
+5 V | 12 V | 5 Vsb | ||||
| 1 A |
4.5 A (0.5 A min.) |
1 A |
|||||
|
Efficiency |
75% | ||||||
|
Temperature |
Operating : 0 ˚C~ 50 ˚C, Storage : -30 ˚C~ 70 ˚C | ||||||
| MTBF (hrs) |
100.000 | ||||||
|
Output Connector |
Optional cable | ||||||
| Dimensions |
76.2 x 101.6 x 32 (mm) | ||||||
Ordering Information:
ACE-A406A-RS 60W AC-DC ATX open frame power supply
ACE-A406A_Datasheet.pdf (229kB)
