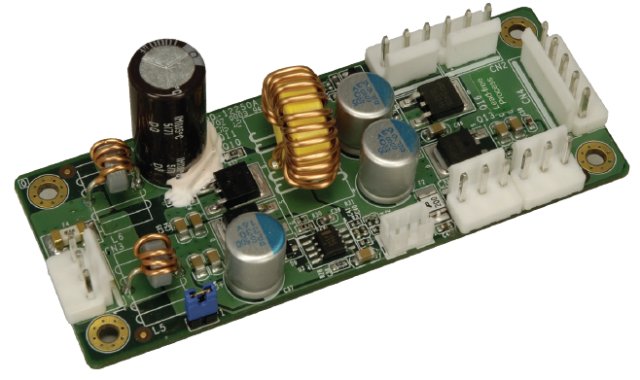

IDD-12250A 50 W+60 W DC/DC Converter Module
  • 50W + 60W (12V Pass Through)
  • Total power 110W
  • AT or ATX Mode On/Off
  • Up to 90% Efficiency
  • RoHS Compliant
  • Compact Size

Input 12VDC
Output

12V@5A (pass through),

5V@10A (Max.) & 5VSB@0.5A (Max.)

Max. Total Output: 50W plus 60W (12V pass through)

Performance Characteristics

Noise & Ripple: <25mV

Load Regulation: <120mV

Operating temperature 0º C to +70ºC
Dimmensions

40mm x 100mm

Weight 46g





Ordering information:



IDD-12250A-R10 50 W+60 W DC/DC 12 V input; 12 V, 5 V & 5 VSB output

CB-5PSBC-RS 20 cm cable to SBC power input

CB-JST3PSW-RS 30 cm cable on/off switch

CB-JST3P001-RS 30 cm 5 VSB, PS_ON wire to SBC

CB-3PSATA-RS 10 cm cable for SATA power

CB-3PIDE-RS 10 cm cable for IDE HDD power

CB-P1LP4-RS 20 cm cable for FSP0601AD101C 60 W/ UP0451E12P 45 W/UP0251E12PL 25 W AC-DC adapter

CB-MD4P4-RS 20 cm cable for 63000-FSP120AAB-RS 120 W AC-DC adapter

CB-NOLP4-RS 20 cm cable for terminal block DC input
