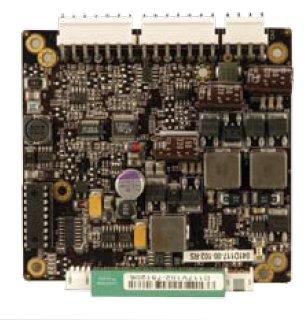

PM-P006UPS 65 W DC/DC Converter Module, with UPS
  • Load down protection

  • Over voltage protection

  • Short circuit protection

  • Over current protection

  • Smart battery charger for Li-Polymer

  • I/O interface: SMBus/I2C & RS-232

  • Support up to 2 battery packs

  • AT/ATX modes

  • Utility program: pull data out through RS-232 to a system


Input

6 VDC to 36 VDC

Output

12 V@4 A, 5 V@10 A, 3.3 V@8 A, 5 VSB@1 A, & -12 V@0.1 A Max. total output: 65 W

Performance Characteristics

Line Regulation: <300mV (at full loaded)
Load Regulation:<85mV (at Vin 9-16V)
Efficiency: Min. 90%

Battery charge voltage: 12 V ~ 36 V

Operating temperature -20º C to +85ºC
Dimmensions

90 mm x 96 mm

Weight 178g





Ordering Information:



PM-P006UPS-R10 65 W ATX DC/DC 6-36 VDC input, 12 V, 5 V, 3.3 V, -12 V and 5 VSB PC/104 power module with UPS

BAT-LI-2S1P3000 Smart battery, Li-Polymer, 2S1P, 3000 mAH

CB-JST3PSW001-RS 30 cm power on/off switch cable

CB-P1LP4-RS 20 cm cable for FSP0601AD101C 60 W/ UP0451E12P 45 W/UP0251E12PL 25 W AC-DC adapter

CB-MD4P4-RS 20 cm cable for 63000-FSP120AAB-RS 120 W AC-DC adapter

CB-NOLP4-RS 20 cm cable for terminal block DC input
