- USB 2.0 interface, compatible with USB1.1
- 4 digital inputs with optical isolation
- 4 SSR relay outputs
- communication commands for reading and setting I/O status
- FW upgradable

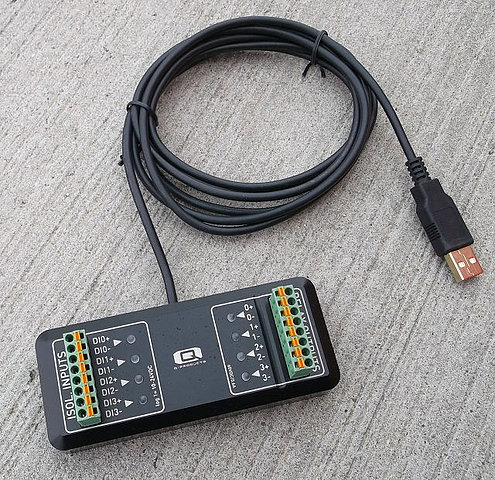

USB-DIO is our new measurement module, which we designed for rapid deployment in production. The module is also an ideal teaching tool for students or small home automation.P>
It Includes 4 optically isolated inputs and four relay outputs.
The is connected to PC via USB interface. It creates virtual serial port under Windows and Linux OS.
Digital input operates with 24V logic. After connecting the voltage higher than 10VDC input signals indicate logic level 1 on status LED and input can be software-loading commands.
The outputs are equipped by four SSR (solid state relay). Enable you to switch a maximum loads 60V/600 mA.
The module also has a safety function for the outputs. After connecting the module to a PC, the outputs are set to values that are stored in memory.
To communication is realized via commands. You can read the value of inputs (all or individually), adjust outputs (all or individually), set default values for the outputs, etc.P>
The firmware can be customized according to customer requirements. Firmware upgrade is done through software interface.P>
|
Rozhranie |
USB 2.0 |
|
|
Digital inputs |
4ch, isolated, 24V logic |
|
| Relay outputs | 4ch, SSR relays, 60VDC/0.6A | |
More info: tel. +421-2-4464-6474 or info(@)qproducts.sk
