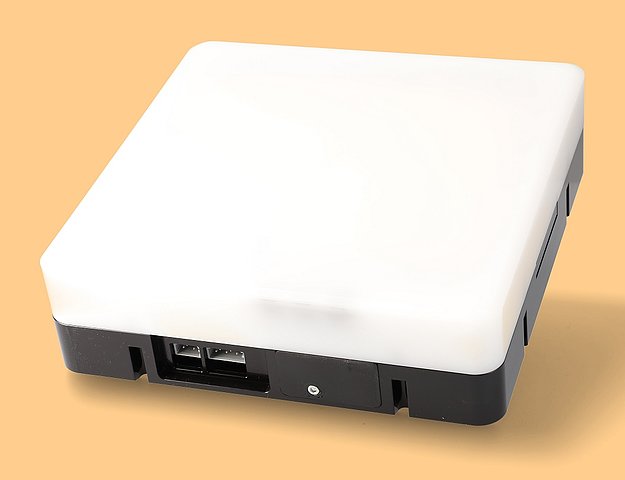

- PoE UHF RFiD Gen 2 reader and writer
- internal antenna
- isolated RS485 & Ethernet interface
- 24V DC/AC or PoE power
- wide temperature range
- 24/7 operation
Description:
A new generation of universal UHF RFID reading and writing head with PoE. Ideal for use in entry systems, logistics, assembly lines, and monitoring installations – a standard alternative to contact and contactless ID cards or barcode solutions.
External or internal versions of the read heads are available.
The read head software and firmware are always designed according to the customer's needs. A wide portfolio of brackets and brackets (including custom solutions).
The reading head can be powered via PoE or from a 24V source. An isolated RS485 serial interface and Ethernet are used for communication. Both interfaces can be used simultaneously.
Technical specification:
|
Frequency |
full range 860 to 960 MHz |
|
Antenna |
built-in (default) or external |
|
Operating Distance |
up to 15m, depending on tag |
|
Interfaces |
RS-485 isolated Ethernet modes: TCP server, TCP client, UDP server, UDP client
|
| Protocols sup- ported |
UHF Gen 2, EPCglobal Gen2 (ISO 18000-6C) |
|
Power Requirements |
isolated input 24V DC or AC or PoE power max. 57V DC |
| Regions supported | North America (NA), EU (3 variations), Korea (KR/KR2), People’s Republic of China (PRC - SRRC, MII), Open Region |
|
Radio Power |
adjustable from 5dBm to 30 dBm (1W) |
|
Dimensions |
192,0 x 192,0 x 56,0 mm (WxHxD) |
|
Operating temperature |
-20°C to +60°C |
|
Storage temperature |
-40°C to +85°C |
References:
Volkswagen Slovakia a.s. - production lines, logistics, entrance systems.
Ordering code:
MTTX_RFiD (G2) POE RFID reader standard Gen2, customized firmware, UHF, POE & RS485 interface
