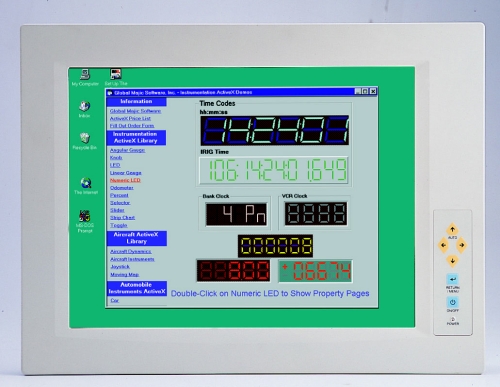

DM-121G/DM-150G/DM-170G IP65&Robust Industrial 12.1/15/17" LCD Monitor
-
Aluminum front panel meet IP65 standard for tough environment
-
Advanced thermal and air-flow design
-
Analog VGA and DVI input interface support
-
Fully mounting ways supports
-
New robust steel chassis for shocking and vibration requirement
-
M models support 9~36V DC power input for mobile application
-
Over 300 nitts high brightness and 50000hrs MTBF long lifetime panel
-
Optional RS-232 interface touch screen
-
OSD Function in the front panel
-
RoHS Compliance
|
Model |
DM-121G |
DM-150G | DM-170G | |
| LCD Size | 12.1" | 15" | 17" | |
|
Input Interface |
VGA+DVI-D |
VGA+DVI-D | VGA+DVI-D | |
| Max Resolution |
800x600 |
1024x768 | 1280x1024 | |
| Brightness (cd/m2) |
400 |
350 | 300 | |
| Contrast |
500:1 |
400:1 | 500:1 | |
| LCD Color |
262K |
262K | 16.2M | |
| Pixel Pitch (mm) |
0.3075 |
0.297 | 0.264 | |
| Front Frame |
Aluminum |
Aluminum | Aluminum | |
| Chassis |
Heavy-duty steel |
Heavy-duty steel | Heavy-duty steel | |
| View Angle (H/V) |
140/110 |
120/100 | 140/130 | |
| Power Adapter |
45W |
45W | 45W | |
| OSD Funcion |
Yes |
Yes | Yes | |
| Mounting |
Wall/Panel/Rack/Arm |
Wall/Panel/Rack/Arm | Wall/Panel/Rack/Arm | |
| Chassis Color |
Silver |
Silver | Silver | |
|
Dimension (WxHxD) (mm) |
340x260x58 |
410x309x65.1 | 452.0x365.0x65.2 | |
| Operation Temperature |
0°C-50°C |
0°C-50°C | 0°C-50°C | |
| IP Level |
IP65 |
IP65 | IP65 | |
| Net / Gross Weight |
3.8kg / 6kg |
6kg / 8.9kg | 6kg / 8.9kg | |
DM-121_150_170.pdf (562kB)
