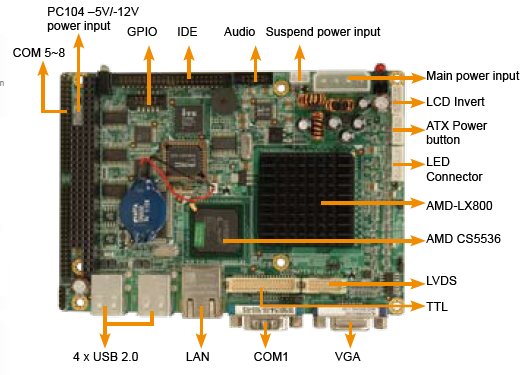

3.5” form factor with AMD® LX800 CPU
-
DDR 333/400MHz SO-DIMM Socket up to 1GB
-
VGA, 24-bit TTL, 18-bit LVDS display interface
-
7 x COM and 1 x RS-232/422/485
CPU |
AMD® Geode LX800 500MHz | |
System Chipset |
AMD® LX800 + AMD® CS5536 | |
BIOS |
Award BIOS | |
System Memory |
One 200-pin 400/333MHz DDR SDRAM SO-DIMM Supported (System max. 1GB) | |
Ethernet |
10/100Mbps Single RTL8100C Ethernet Chipsets | |
I/O |
7 x RS-232 1 x RS-232/422/485 4 x USB 2.0 1 x IDE | |
Expansion |
PC/104 (ISA Bus) | |
SSD |
CF Type II | |
Super I/O |
N/A for legecy free | |
Audio |
AC'97 2.3 Realtek ALC203 | |
Display |
VGA Integrated in AMD® Geode LX800 24-bit TTL 18-bit single channel LVDS | |
Watchdog Timer |
Software programmable supports 1 ~255 sec. system reset | |
Power Supply |
5V only, AT/ATX support | |
Power Consumption |
5V@1.33A (AMD® LX800 with DDR 400/ 1GB) | |
Temperature |
Operation: 0 ~ 60° C (32 ~ 140° F) | |
Humidity |
Operation: 5% ~ 95% non-condensing | |
Dimension |
102 (L) mm x 146 (W) mm | |
Weight |
670 g; NW: 230 g |
Ordering Information:
WAFER-LX2-800-R10
3.5" SBC with AMD Geode LX800 Processor, Audio, VGA/
LVDS,TTL/LVDS, 4xUSB 2.0, 7 x RS-232 and 1 x RS-
232/422/485
IO-KIT-4COM-R10 4 COM Ports Adapter Board
WAFER-LX2-XPE Windows®XP Embedded Image & SLD S/W CD, Licensed
Sticker (W/O CPU Board
