- PoE UHF RFiD Gen 2 reader and writer
- Integrated antenna
- Ethernet interface
- PoE power
- wide temperature range -20 to +60°C
- 24/7 operation
Description:
The new gen. of universal RFID reading and writing unit with PoE capability.
Ideal for use in the entrance systems, on assembly lines, and in monitoring installations
- the standard alternative to contact or contactless ID cards or bar-code solutions.
The exterior or interior versions are available - the software and firmware are designed according
to customer needs.

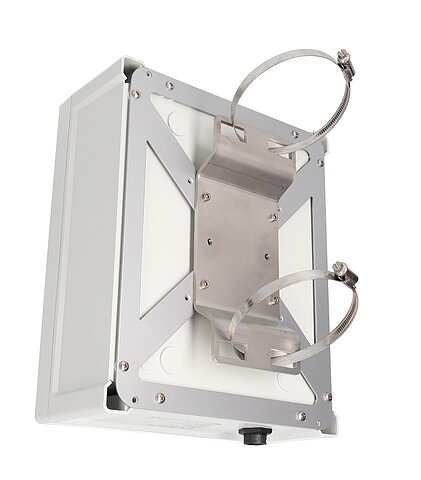

Broad portfolio of holders and brackets (including custom-made solutions).
Technical specification:
|
Frequency |
full range 860 to 960 MHz |
|
Antenna |
built-in (default) or external |
|
Operating Distance |
up to 10m, depending on tag |
|
Interfaces |
RS-485 isolated Ethernet modes: TCP server, TCP client, UDP server, UDP client
|
| Protocols sup- ported |
UHF Gen 2, EPCglobal Gen2 (ISO 18000-6C) |
|
Power Requirements |
isolated input 24V DC or AC or PoE power max. 57V DC |
| Regions supported | North America (NA), EU (3 variations), Korea (KR/KR2), People’s Republic of China (PRC - SRRC, MII), Open Region |
|
Radio Power |
adjustable from 5dBm to 30 dBm (1W) |
|
Dimensions |
192,0 x 192,0 x 56,0 mm (WxHxD) |
|
Operating temperature |
-20°C to +60°C |
|
Storage temperature |
-40°C to +85°C |
|
Protection |
IP65 |
References:
Volkswagen Slovakia a.s. - production lines, logistics, entrance systems.
Ordering code:
MTTX_RFiD (G2) POE IP65 RFID reader standard Gen2, customized firmware, UHF, POE interface
