- Supports a 32-bit 3.3 V or 5 V PCI bus
- 16-CH single-ended or 8-CH differential analog input
- Up to 250 kS/s sampling rate
- Programmable input range: +/-5 V, +/-1 V, +/-0.5 V, +/-0.2 V
- 2-CH 16-bit static analog output
- Programmable function I/O
- Auto-calibration feature
Kompletný zoznam kariet ISA, PCI, PCI Express® PC/104+, CompactPCI, and PXI, DAQ a DIO modulov s možnosťou výberu a porovnania parametrov môžete nájsť cez DAQ selector...

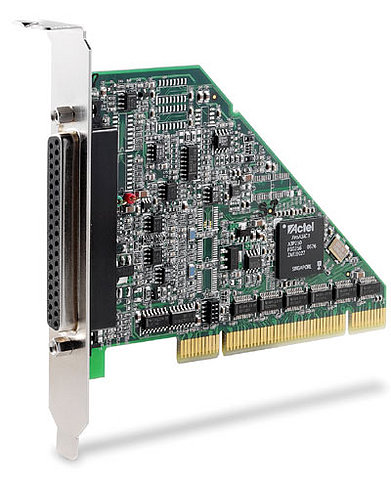

The ADLINK PCI-9221 is a 16-bit high-resolution and low-cost multi-function DAQ card, with 16-CH singleended or 8-CH differential input capable of up to 250 kS/s sampling rate. In addition, the PCI-9221 comes with a 2-CH 16-bit static analog output and programmable function I/O. The software-programmable function I/O supports a variety of applications, including TTL digital I/O, general-purpose timer/counter, encoder input, and PWM output. The flexible function I/O makes the PCI-9221 the best single-board solution for combined data acquisition and simple motion control functionalities. Ideal for manufacturing, laboratory research, and factory automation, the PCI-9221 comes with all the functions you need at an affordable price.
Ordering Information:
| PCI-9221 | 16-Bit Multi-Function DAQ Card with 2-CH Encoder Input |
Associated Software:
| DAQBench 2.43 | V2.43,ActiveX Controls for Measurement and SCADA/HMI Vista support |
| DAQBench Simplified Chinese V2.42 | V2.42,ActiveX Controls for Measurement and SCADA/HMI |
| DAQBench Traditional Chinese V2.42 | V2.42,ActiveX Controls for Measurement and SCADA/HMI |
| DAQ-LVIEW PnP V1.29 | V1.29,LabVIEW™ Interface for all ADLINK PCI/PCI Express(R)/cPCI Series Data Acquisition Cards |
| DAQ-MTLB V1.10 | V1.10,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards |
| DAQMaster V1.2 | DAQMaster Version 1.2 (to manage ADLINK devices and DAQPilot tasks) |
