- Supports a 32-bit 5 V PCI bus
- 12-bit A/D and sampling rate up to 110kS/s
- 16-CH single-ended or 8-CH differential inputs
- On-board A/D FIFO
- Bipolar or unipolar analog input ranges
- 16-CH TTL DI and 16-CH TTL DO
- 2-CH 12-bit multiplying analog outputs
Kompletný zoznam kariet ISA, PCI, PCI Express® PC/104+, CompactPCI, and PXI, DAQ a DIO modulov s možnosťou výberu a porovnania parametrov môžete nájsť cez DAQ selector...

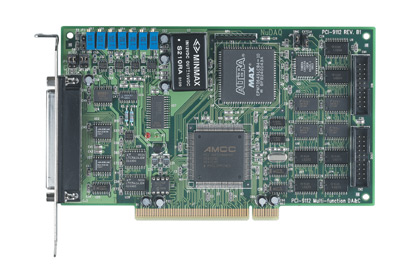

ADLINK PCI-9112/LPCI-9112 is a 16-CH, 12-bit, 110 kS/s multi-function DAQ Card. The PCI-9112/LPCI-9112 device features flexible configurations on analog inputs. It provides analog inputs with 4 programmable input ranges for both bipolar and unipolar inputs. The A/D on the PCI-9112/LPCI-9112 features a sampling rate up to 110 kS/s with resolution at 12 bits. The device supports automatic analog input scanning, and offers a differential mode for 8-CH analog inputs and maximum noise elimination, as well as single-ended modes for 16-CH analog inputs. The PCI-9112/LPCI-9112 also features 2-CH 12-bit analog outputs, 1-CH 16-bit general-purpose timer/counter, 16-CH TTL digital inputs and 16-CH TTL digital outputs. LPCI-9112 is the MD1 size, low-profile version of PCI- 9112. The low-profile PCI card is especially suitable for the applications which have the space-restriction on the size of peripheral cards. Based on the technology of PCI-9112, LPCI-9112 enhances the supporting of PCI bus from 5 V only to 3.3 V or 5 V universal PCI bus.
Ordering Information:
| PCI-9112 | 16-CH 12-Bit 110 kS/s Multi-Function DAQ Card |
Associated Software:
| DAQBench 2.43 | V2.43,ActiveX Controls for Measurement and SCADA/HMI Vista support |
| DAQBench Simplified Chinese V2.42 | V2.42,ActiveX Controls for Measurement and SCADA/HMI |
| DAQBench Traditional Chinese V2.42 | V2.42,ActiveX Controls for Measurement and SCADA/HMI |
| PCI-OCX V4.22 | V4.22,ActiveX Controls for ADLINK PCI/PCI Express(R)/cPCI Series Data Acquisition Cards |
| DAQ-LVIEW PnP V1.29 | V1.29,LabVIEW™ Interface for all ADLINK PCI/PCI Express(R)/cPCI Series Data Acquisition Cards |
| PCIS-VEE V3.21 | V3.21,VEE ™ Interface for ADLINK PCI/cPCI Series Data Acquisition Cards |
| DAQ-MTLB V1.10 | V1.10,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards |
| DAQCreator Evaluation V1.0 | Smart & Easy-to-Use Data Acquisition System Creator |
| DAQMaster V1.2 | DAQMaster Version 1.2 (to manage ADLINK devices and DAQPilot tasks) |
