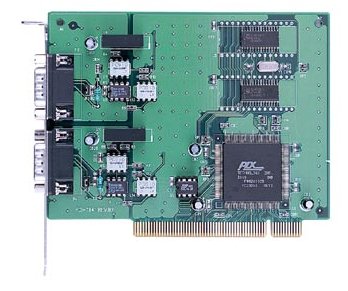

PCI-7841 PCI Dual-port Isolated CAN-Bus Interface Card
- Two independent CAN network operation
- Up to 1Mbps programmable transfer rate
- 16MHz CAN controller frequency
- 2500Vrms isolation protection
- Direct memory mapping to the CAN controllers
- Powerful master interface for CAN bus protocols
- PCI bus plug and play
- DOS libraries and Windows DLLs (95, 98, NT, 2000, XP)
The PCI-7841/cPCI-7841 is a Controller Area Network (CAN) interface card. It supports a dual-port CAN's interface that can run independently or bridged at the same time. The built-in CAN controller of this card is Philips SJA1000, which provides bus arbitration and error detection with auto correction and re-transmission function.
Driver support:
Windows98/NT/2000/XP/Vista and Linux
PCI-7841+cPCI-7841_Manual_2.pdf (330kB)
PCI-7841+cPCI-7841_Datasheet.pdf (133kB)
