- operator panel 4th. gen.,
- HMI fanless Panel PC, customized product,
- 24/7
- integrated 18.5" Full-HD LED LCD with ruggedized touch screen,
- production process control terminals for SAP, HMI, SCADA control terminal,
- wide operation temp range -10 to +60°C,
- CNC milled chassis,
- dusty environment
- WIFI 2.4GHz and 5GHz

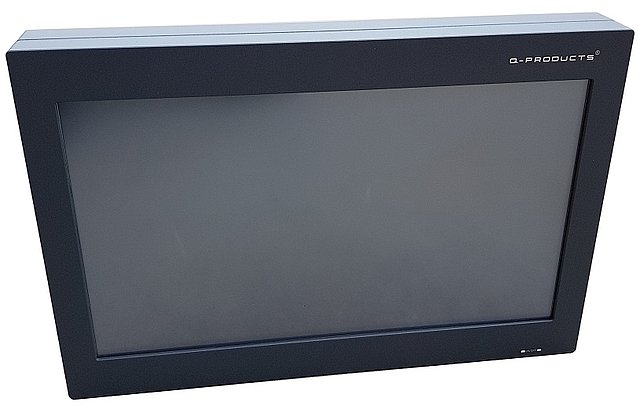

Universal fanless operator panel or HMI (Human machine interface) PC with integrated touch screen. CNC milled robust alluminium body for harsh enviroment. Wide variety of connectors: standard, M12 or MIL IP65 protected types.
All these features combine to provide a powerful slim panel PC solution with excellent performance.
Afordable and reliable quality at panel PCs are used in Human Machine Interface (HMI), SCADA,
process control, factory automation, building control and home automation.
Specification:
|
LCD size |
18.5” 1920x1080 TFT LED LCD, 500cd/m2, 16.2M color |
|
Touchscreen |
Resistive type |
|
CPU |
Intel® Celeron N2930 Quad core |
|
RAM |
4GB RAM |
|
HDD/CF |
250GB 2.5" SATA SSD, mSata half-size slot |
| Interfaces |
1xGigabit LAN Intel 2xRS232 non-isolated 2xUSB3.0 + 2xUSB2.0 DP 2nd output Wifi 2.4GHz + 5GHz (Option) VGA 3th output (Option) |
|
Power input |
18-30V DC, ext. adapter |
|
Consumption |
< 45W |
|
Power output |
available for ext. devices 12V DC/1A + Power IN/3A |
|
Dimensions |
468.0 x 311.0 x 61.0 mm (WxHxD) |
|
Weight |
5,9kg |
|
Mounting |
VESA 75 and VESA 100 on rear side |
|
Operating temperature |
-10ºC to +60ºC |
|
Storage temperature |
-20ºC to +70ºC |
| OS compatibility |
Windows 10 PRO / ENT Windows 10 IoT Enterprise LTSC Linux kernel 3.x |
| Chassis | CNC milled, EN AW 5083 aluminium alloy |
| Color | RAL 7035 Anthracite, w/laser engraving |
Ordering info:
1. HUMIN-215-QC/VESA
Standard version with VESA 75 a VESA 100 mounting.
2. HUMIN-215-QC/PANEL
Panel version with wider front panel, includes VESA 75 a VESA 100 mounting.
Without PKI/Smart card reader.
