HUMIN 215 QC 21.5” Operator Panel HMI, Celeron N2930, RFiD Legic Reader
  • operator panel 3th. gen.,
  • HMI fanless Panel PC, customized product,
  • 24/7

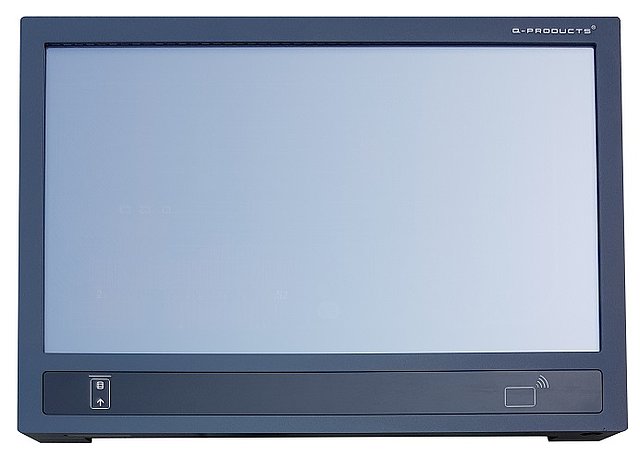

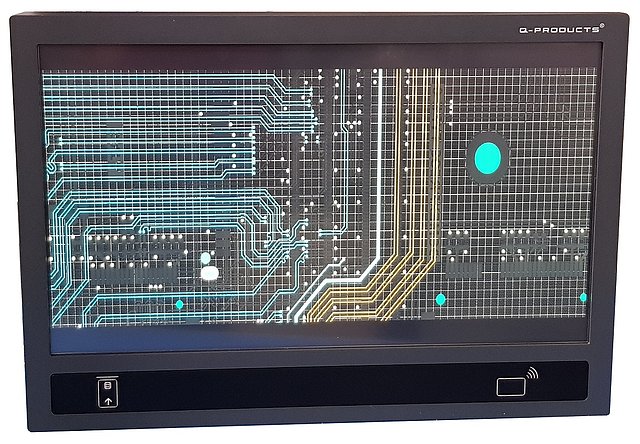

  • integrated 21.5" Full-HD LED LCD with ruggedized touch screen,
  • RFiD 13.56MHz reader and Smart Card reader,
  • RFiD card holder (option)
  • production process control terminals for SAP, HMI, SCADA control terminal,
  • wide operation temp range 0 to +60°C,
  • CNC milled chassis,
  • dusty environment

Universal fanless operator panel or HMI (Human machine interface) PC with integrated touch screen and RFiD Legic Advant reader. CNC milled robust alluminium body for harsh enviroment. Wide variety of connectors: standard, M12 or MIL
IP65 protected types.



All these features combine to provide a powerful slim panel PC solution with excellent performance.
Afordable and reliable quality at panel PCs are used in Human Machine Interface (HMI), SCADA,
process control, factory automation, building control and home automation.



Specification:



LCD size

21.5” 1920x1080 TFT LED LCD, 300cd/m2, 16.2M color

Touchscreen

Resistive type

CPU

Intel® Celeron N2930 Quad core

RAM

4GB RAM

HDD/CF

250GB 2.5" SATA SSD, mSata half-size slot

Interfaces

1xGigabit LAN, 1xRS232 non-isolated, 1xRS232 isolated, 1xRS485 isolated, 2xUSB3.0 + 2xUSB2.0 (+2xUSB2.0 internal), DP, VGA (option)

Readers

13.56MHz RFiD Legic SM-4200 reader

Legic RF Standard Prime and Advant , ISO14443A, ISO14443B, ISO15693, NFC, Mifare compatible

Card holder for RFiD cards (option)

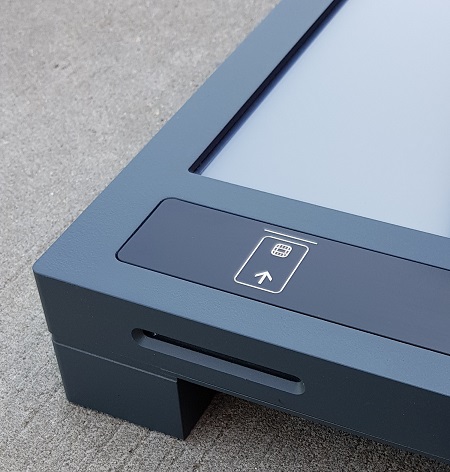

Smartcard reader / PKI

Smart card

VESA version only, bottom side

Digital I/O option

4 Isolated inputs 0 - 24 VDC max. 70VDC (optocoupler),

4 Isolated outputs 60 VDC/ 0.6 A (SSR Form A)

Power input

10-30V DC, ext. adapter

Power output

available for ext. devices 12V DC/1A + Power IN/3A

Dimensions

522.0 x 363.0 x 61.0 mm (WxHxD)

Weight

6,1kg

Mounting

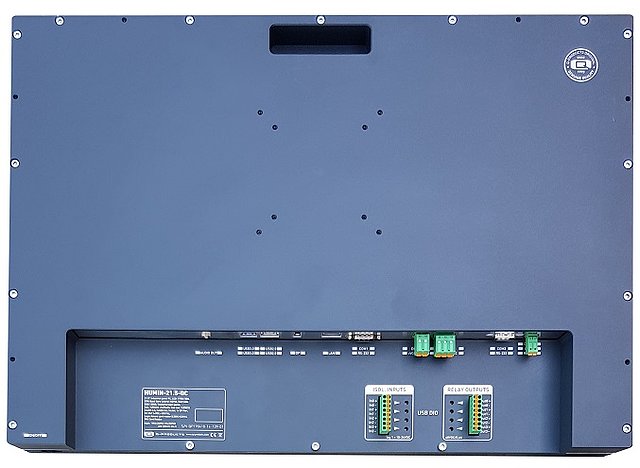

VESA 75 and VESA 100 on rear side

Operating temperature

0ºC to +60ºC

Storage temperature

-20ºC to +70ºC

OS compatibility MS Windows 7, Windows 8, Windows 8.1, Windows 10, Windows Embedded Standard 7, Windows Embedded Standard 8 / 8.1, POSReady 7, Windows Embedded 8.1 Industry Pro Retail, Windows 10 IoT Enterprise LTSB & LTSC, Linux 2.6.x,3.x

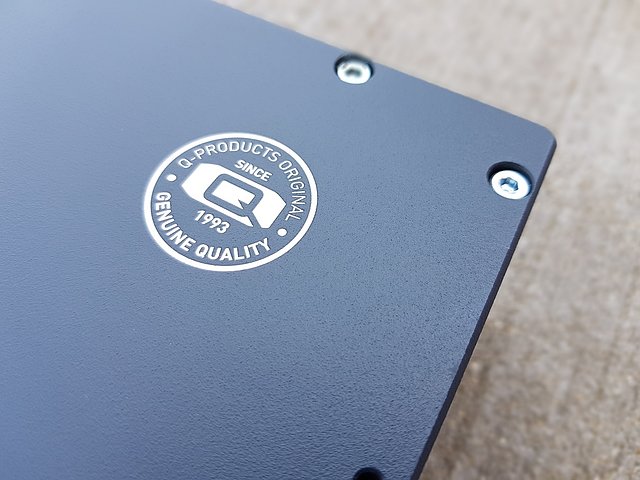

Chassis CNC milled, EN AW 5083 aluminium alloy
Color RAL 7035 Anthracite, w/laser engraving







Ordering info:



1. HUMIN-215-QC/VESA

Standard version with VESA 75 a VESA 100 mounting.



2. HUMIN-215-QC/PANEL

Panel version with wider front panel, includes VESA 75 a VESA 100 mounting.

Without PKI/Smart card reader.
