Industrial PC PS/2 AT, AC Input
|
||
|

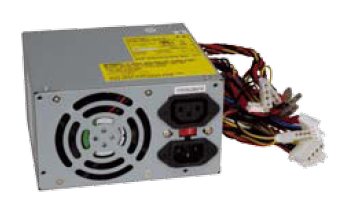

ACE-935AL PS/2 300W AC Input AT Type
- 100% Meet RoHS Compliance
- AT power supply
- Full functional over voltage / current protection
- Multiple safety / EMC certificated
- Power 300W
|
Input Type |
85 ~ 140 VAC,170 ~ 270 VAC Auto Range |
|||||||
|
Output Voltage |
+3.3 V |
+5 V | +12 V | -5 V | -12 V | +5 Vsb | ||
|
40 A (3A min) |
8 A (0.1A min) | 0.3 A | 0.7 A | |||||
| Efficiency |
68% |
|||||||
| Temperature |
0 ˚C ~ 50 ˚C (Operating), -40 ˚C ~ 75 ˚C(Storage) |
|||||||
| MTBF (hrs) |
100,000 |
|||||||
| Output Connector |
P8+P9 x1, Extra +5V(P10) x1, HDD/CDROM x5, FDD x2 |
|||||||
Ordering Information:
ACE-935AL-RS
300 W AC-DC PS/2 AT Power Supply, AC select switch
ACE-935AL_Datasheet.pdf (222kB)
