- 1/3" Double scan color CCD with 410K pixels
- Enhanced WDR function (SVIII) : Max. 52dB
- Removed noise, ghosting effect with SSNR
- Day & Night with ICR (Infrared Cutfilter Removal)
- High Res. of 520TV lines (Color), 570TV lines (B/W)
- 0.13 lux at F1.2 (normal color mode)
0.0004 lux at F1.2 (Sens-up mode)
0.01 lux at F1.2 (AGC ON) - Privacy image masking with free position
- Motion Detection
- RS-232C remote control
- OSD (On Screen Display)
- S/N ratio of 50dB
- Dual voltage : 24VAC & 12VDC (N/P)
In CCTV systems, light level is the most critical factor affecting camera performance and picture quality. Appropriatelight sensitivity control is, therefore, the most important yet hardest-to-achieve technology.
Samsung Techwin has made a real breakthrough in this light-sensitive technology and developed a camera, whichproduces much clearer and better-defined images under 'any' lighting conditions. The key to this breakthrough technologyis the SVIII, a revolutionarily new version of the SV (Super Vision) Series DSP systems. The new SVIII technology achievesa trinity which consists of an strikingly improved low-light sensitivity of 0.13 Llux @ F1.2 in normal color mode, a 126 times more extended dynamic range, and more sophisticated images with a high resolution of 520TV lines.

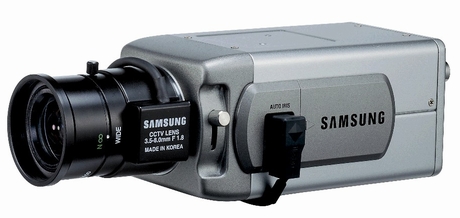

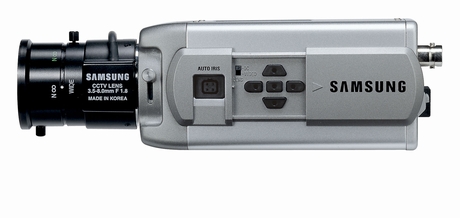

The new SHC-730 is a 1/3ˇ± CCD professional-quality high sensitivity & WDR color camera that incorporates SVIII DSP system. It is truly an optimized surveillance solution covering all the variable light conditions ranging from the extreme dark locations to harsh backlight conditions.
Model:
SHC-730N
SHC-730P
Power Source |
24VAC / 12VDC ( 10%) |
Power Consumption |
4.5W |
Total Pixels |
for SHC-730N: 811(H) x 508(V) for SHC-730P: 795(H) x 596(V) |
Effective Pixels |
for SHC-730N: 768(H) x 494(V) for SHC-730P: 752(H) x 582(V) |
Image Pick-up Device |
1/3 inch, Vertical double density interline CCD |
Scanning System |
2 : 1 Interlace |
Scanning Frequency |
for SHC-730N: Horizontal :15.734KHz Vertical : 59.94 Hz for SHC-730P: Horizontal : 15.625 KHz Vertical : 50.00 Hz |
Synchronization |
Internal |
Resolution |
Color : 520TV Lines (Min.) / B/W : 570TV Lines (Min.) |
Video Output |
for SHC-730N: 1.0Vp-p / 75Ω (Video 0.714Vp-p, Sync 0.286Vp-p) for SHC-730P: 1.0Vp-p / 75Ω (Video 0.7Vp-p, Sync 0.3Vp-p) |
S/N Ratio |
50dB (AGC off / Weight On) |
Min. Illumination |
Color : 0.05 Lux @ F1.2 - normal color mode (0.13 Lux @ F1.2- EIAJ standard) 0.0004 Lux @ F1.2 - Sens-up mode (0.001Lux @ F1.2- EIAJ standard) Monochrome : 0.01 Lux @ F1.2 |
WDR | 52dB |
Day & Night | OFF / AUTO (Filter Auto Change)

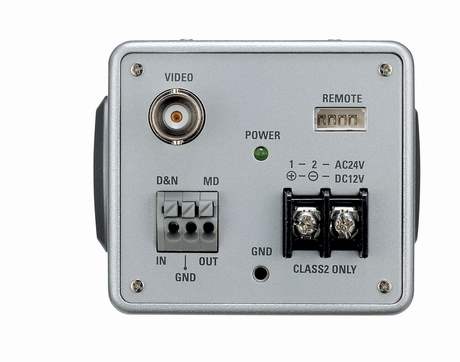

(External Day/Night mode control capability via terminal at the back panel) |
Day & Night |
Off / Auto selectable (Electrical) |
Gain Control |
Low / Middle / High / Off selectable |
SSNR |
Low / Middle / High / Off selectable |
White Balance |
ATW / AWC / Manual selectable (1800°K ~ 10,500°K) |
BLC |
Low / Middle / High / Off selectable |
Electronic Shutter |
for SHC-730N: AUTO / Manual (1/60 ~ 1/120,000sec) for SHC-730P: AUTO / Manual (1/50 ~ 1/120,000sec) |
Sens-up |
Auto / Off (Selectable limit 2X ~ 128X) |
OSD |
Built-in |
Motion Detection |
MD1 / MD2 / OFF (Built-in Alarm output connector) |
RS-232C | Built-in |
Enhanced SSNR | Low, Middle, High |
D.ZOOM | Built-in (Pan Tilt) |
Privacy Function |
ON / OFF (4 Programmable Zone) |
Sharpness |
On / Off (Level adjustable) |
IRIS Control |
DC / VIDEO |
Lens Mount |
CS Mount (Easy Focus type) (C-Mount is mountable by using adaptor) |
Operating Temperature |
-10°C ~ +50°C |
Operating Humidity |
~ 90% RH |
Dimension |
69(W) x 56(H) x 125(D)mm |
Weight |
480g |
Low Light
The new SHC-730 premier camera achieves a minimum subject illumination of an incredibly low 0.13Lux @ F1.2 in color and an amazing 0.0004Lux @ F1.2 in Sens Up mode, which ensures that the camera can recognize subjects even in the extreme dark.
The revolutionary SVIII DSP technology uses Intelligent Gain Control and Enhanced SSNR in order to provide the highest level of performance for ultra-low-light imaging. In unfavorable light conditions, it analyzes the input data and applies unique SVIII gain control process to each signal. As a result, it substantially minimizes picture noise as well as provides a extra high sensitivity and unmatched picture quality.
Moreover, reduced noise can help to keep image file sizes down when recorded digitally.
This is because image noise is perceived by the compression engine as being a changed or a varied area of tone.
WDR
One of the common limitations of the cameras designed for low-light imaging is their inability to address the challenges of harsh backlight imaging situations owing to a relatively narrow dynamic range. The SVIII DSP technology employs multiple histogram-based image analysis in order to ensure the highest level of performance not only for ultra-low-light imaging, but for wide dynamic range applications. It carries out an precise analysis on different extreme light levels to get detailed information from the dark part without any saturation from the bright part. This realizes a 126 times extended dynamic range which is equivalent to an outstanding dynamic range of 52dB.
There is no limitation of zone area with the the perfect SVIII WDR solution, and the color image is crisper than any other WDR functions.
Resolution
The SHC-730 boasts an unusually fine horizontal resolution of 520TV lines to deliver sharp surveillance images. Its unique SVIII DSP chip offers all-time crisper pictures than normal resolution color cameras, which is perfect for low-light circumstances because it enables the camera to 'see' clearly in the dark and even peer through clouds or fog. In addition, the unit provides increased signal strength without additional noise, which ensures a high signal-tonoise ratio of 50dB.
|
