Polovodičové disky ATA, SATA a CF
IFD-180A/IFD-250A 32MB-32GB 44-pin, 2.00mm pitch IDE
iFD-2500C(2500W)/iFD-2500I 128 MB-128 GB Serial ATA I and II
iFD-2500/iFD-M250I 32 MB~8 GB 44-pin(2.0 mm) IDE/ATA

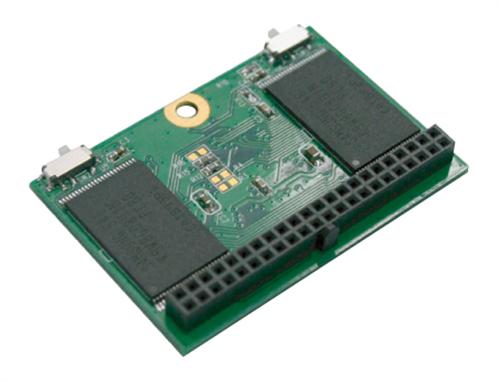

iFP 4000/iFP 4400-iFP 4000+ 32 MB-8 GB 40-pin or 44-pin IDE/ATA
  •  Noiseless
  •  High reliability
  •  Better shock durability
  •  Low power consumption
  •  To operate under high temperature and low temperature

Model

-10°C~+70°C

IFP-4000I-xxx/IFP-4400I-xxx

IFP-4000IP-xxx/IFP-4400IP-xxx



-40°C~+85°C

IFP-4000W-xxx/IFP-4400W-xxx

IFP-4000WP-xxx/IFP-4400WP-xxx

Capacities

32MB - 8GB

Interface

40-pin or 44-pin IDE/ATA

IDE Transfer Mode

PIO mode 0-4

MwDMA mode 0-2

UltraDMA mode 0-2

PIO mode 0-4

MwDMA mode 0-2

UltraDMA mode 0-4

Data transfer rate

32 MB~2 GB(single):

Read-10 MB/sec./Write-6 MB/sec.

2 GB~8 GB(dual):

Read-20 MB/sec./Write-11 MB/sec.

32 MB~2 GB(single):

Read-20 MB/sec./Write-8 MB/sec.

2 GB~8 GB(dual):

Read-40 MB/sec./Write-20 MB/sec.

Protocol mode

N/A

N/A

Access mode

N/A

Storage temp.

-45°C~+95°C

Humidity

10%~95% non-condensing

Vibration

5 G(7~2000 Hz)

Shock

50 G/10 ms

ECC technology

High reiability based on the internail ECC function

MTBF

>3,000,000 hours

R/W endurance

2,000,000 times

Wear-leveing

Support

DC input voltage

+3.3V/+5V single power supply operation

Power mode

Auto stand-by and sleep mode

Power consumption

150 mA(max.)

Enclosure material

CF and plastic frame with metal cover

Dimension

Vertical 40-pin:60.2x27.8x6.4 mm ; Vertical 44-pin:50.3x27.3x5.8 mm

Horizontal 40-pin:55x32.4x9 mm ; Horizontal 44-pin:48.2x32.6x8.6 mm

Certificate

CE,FCC,ROHS
