PIAGP full-size zbernice (AGP+PCI+ISA bus)
|
||
|

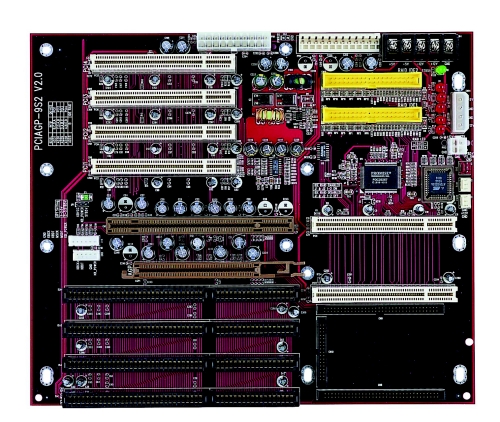

PCIAGP-9S2 9-slot ISA/PCI/AGP backplane
PCIAGP backplane for SAGP series boards.
For use with rack and wall-mount chassis.
|
Backplane Type |
Active PIAGP Backplane | |
|
Number of Segments (Individual Systems) |
1 | |
| Total Number of Slots | 9 | |
| Power Input Connector(s) |
20-pin standard ATX male connector P8/P9 standard AT power connector set | |
| PIAGP Slots (CPU Slot) | 1 | |
| PICMG 1.0 Slots (CPU Slot) | 1 | |
| PCI Slots | 4 | |
| ISA Slots | 3 | |
| AGP Slots | 1 | |
PCIAGP.pdf (514kB)
