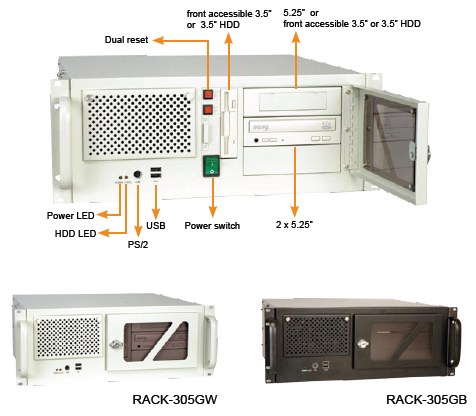

RACK-305G 4U 14-slot Full-size Rackmount Chassis
- RoHS compliant design
- Two USB ports on the front panel
- Dual reset buttons for dual systems
- Two 8 cm cooling fans with replaceable fan filters
|
Construction |
Heavy duty metal | |
|
SBC Form Factor |
Full-size, slot CPU card | |
| Drive Bays |
3 x 5.25" + 1 x 3.5" HDDor 2 x 5.25" + 2 x 3.5" HDD or 2 x 5.25" + 1 x 3.5" HDD + 1 x front accessible 3.5”or 2 x 5.25" + 2 x front accessible 3.5" |
|
| Cooling Fans | 2 x 8 cm | |
| I/O Ports | 2 x USB | |
| Expansion Slots | 14 slots for RACK-305G 7 slots for RACK-305GATX | |
| Indicators | Power, HDD | |
| Buttons | 1 x power switch, 2 x reset buttons | |
| Operating Temperature | 0~50°C | |
| Operation Humidity | 10% ~ 90% | |
| Color | W: White / B: Black | |
| Weight (Net/Gross) | 10.4kg / 15kg | |
| Dimensions (DxWxH) | 413mm x 431mm x 176mm | |
Backplane Options
| Model No. | SBC Type | PCI | ISA | PCIe x1 | PCIe x4 | PCIe x16 | PSU Connector |
| PCI-13SD-RS-R40 | PICMG 1.0 | 3+4 | 3+3 | 0 | 0 | 0 | AT/ATX |
| PCI-14S2-RS-R40 | PICMG 1.0 | 4 | 8 | 0 | 0 | 0 | AT/ATX |
| PCI-14S3-RS-R40 | PICMG 1.0 | 4 | 9 | 0 | 0 | 0 | AT/ATX |
| PX-14S3-RS-R41 | PICMG 1.0 | 12 | 2 | 0 | 0 | 0 | AT/ATX |
| PX-14S5-RS-R40 | PICMG 1.0 | 7 | 6 | 0 | 0 | 0 | AT/ATX |
| BP-14S-RS-R40 | ISA | 0 | 14 | 0 | 0 | 0 | AT |
| PE-6S-R40 | PICMG 1.3 | 2 | 0 | 2 | 0 | 1 | ATX |
| PE-10S-R40 | PICMG 1.3 | 4 | 0 | 4 | 0 | 1 | ATX |
| PE-10S2-R40 | PICMG 1.3 | 4 | 0 | 4 | 0 | 1 | ATX |
| PE-13SD-R40 | PICMG 1.3 | 4 | 0 | 4 | 1 | 2 | ATX |
| PXE-13S-R-40 | PICMG 1.3 | 8 | 0 | 3 | 0 | 1 | ATX |
| SPXE-14S | PICMG 1.3 | 0 | 0 | 12 | 0 | 0 | ATX |
Power Suplly Options
| Type | Model No. | Watt |
| AT | ACE-935AL-RS | 300W |
| AT | ACE-940AP-RS | 390W |
| ATX | ACE-841AP-S-RS | 400W |
| ATX | ACE-850AP-RS | 500W |
| ATX | ACE-4860AP-RS | 600W |
| ATX redudant | ACE-R4130AP-RS | 300W |
Ordering Information:
RACK-305G / ACE-935AL
4U 14-slot rackmount chassis, with ACE-935AL-RS,
RoHS
RACK-305G / ACE-832AP
4U 14-slot rackmount chassis, with ACE-832AP-RS,
RoHS
RACK-305G ATX/ ACE-832AP
4U ATX MB rackmount chassis, with ACE-832AP-RS,
RoHS
Rack-305G._Datasheet.pdf (273kB)
