RACK-500G 5U 5-slot Full-size Rackmount Chassis

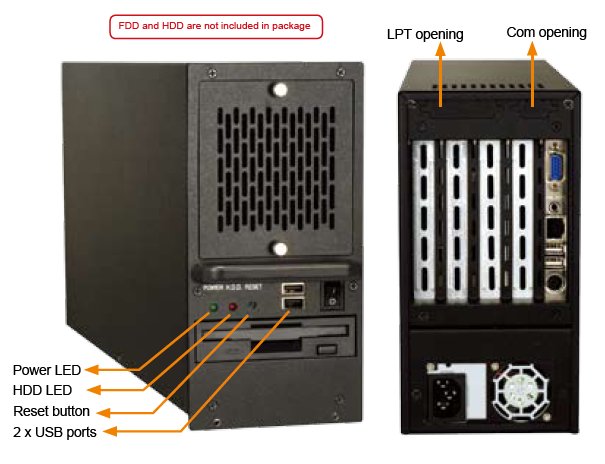

RoHS compliant design 2 x USB ports on front panel 1 x front-accessible 3.5" and 1 x 3.5" HDD drive capacity Hot-replaceable 8 cm cooling fan 19" rack-mountable carrier (optional)
Construction
Heavy duty metal
SBC Form Factor
Full-size, slot CPU cards
Drive Bays 1 x front-accessible 3.5"
1 x 3.5" HDD
Cooling Fans 1 x 8cm I/O Ports 2 x USB I/O openings 1 x LPT, 1 x COM Expansion Slots 5 slots Indicators Power, HDD Buttons Power switch, reset Operating Temperature 0~50°C Operation Humidity 10% ~ 90% Color W: White / B: Black Weight (Net/Gross) 6kg / 9kg Dimensions (DxWxH) 440.2mm x 110.6mm x 221.3mm Backplane Options
Model No. SBC Type PCI ISA PCIe x1 PCIe x4 PCIe x16 PSU Connector PCI-5S2-RS-R40 PICMG 1.0 4 1 0 0 0 AT PCI-5S2A-RS-R40 PICMG 1.0 4 1 0 0 0 ATX PE-5S2-R40 PICMG 1.3 0 0 3 0 1 ATX PE-5S-R40 PICMG 1.3 2 0 0 1 1 ATX HPE-5S1-R40 PCI/PICOe 4 0 0 0 0 ATX HPE-5S2-R40 PCI/PICOe 4 0 0 0 0 ATX HPE-5S3-R40 PCI/PICOe 2 0 2 0 0 ATX Power Supply Options
Type Model No. Watt AT ACE-916AP-RS 150W ATX ACE-4518AP-RS 180W ATX ACE-4525AP-RS 250W Ordering Information:
RACK-500G / ACE-916AP / PCI-5S2 5U 5-slot rackmount chassis, with ACE-916AP-RS
and PCI-5S2-RS-R40, RoHS

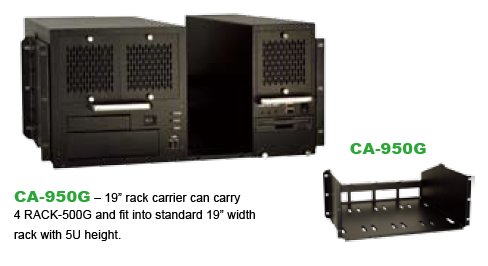

CA-950GB 19" rack carrier for RACK-500G and RACK-900G,
black, RoHS
