Industrial PC 1U AT/ATX AC/DC Input napájacie zdroje
|
||
|
||
|

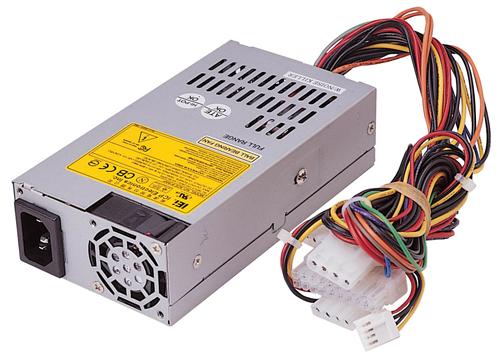

ACE-4518AP 1U 180W Industrial ATX power supply w/PFC
- 100% Meet RoHS Compliance
- High efficiency over 82%
- Full functional over voltage / current protection
- Complies with Flex ATX and ATX12V standard
- Multiple safety / EMC certificated
|
Input Voltage |
90 ~ 265VAC Full Range | |
|
Efficiency |
68% | |
| Protection |
Over Voltage/Load Protection and Short Circuit Protection TTL signal compatible power good signal | |
| Vibration | 10-55Hz at 2G 3min. period, 30 min. along X, Y and Z axis | |
| Shock |
10G for 11ms once on each X, Y and Z axis. Built-in cooling fan | |
| Output Connector |
1x20PIN ATX, 1x4PIN 12V CPU, 3xHDD/CDROM, 1xFDD +3.3V & +5V≦61W | |
| MTBF | > 100.000 h. | |
| Safety | TUV (ACE-816AP/916AP/4518AP) | |
| EMI | Meets FCC class “B”,EN55022 class “B” | |
| EMS Standard |
IEC 801-2 8KV(Air Discharge) IEC 801-3 3V/M criteria A IEC 801-4,2KV criteria B | |
| Operating temperature | 0~50°C | |
| Storage temerature | -20~80°C | |
| Dimensions | 150 x 81.5 x 40.5 mm | |
