RoHS compliant
-
High efficiency and reliability
-
Low noise and ripple
-
Meets ATX Specification v2.2, with 20+4-pin ATX power and SATA connectors
-
Overvoltage and overcurrent protection
-
Meets multiple safety standards and is EMC certified
|
Voltage |
90 ~ 264 VAC Full Range | ||||||||||||||
|
Frequency |
47 Hz~ 63 Hz | ||||||||||||||
| Input Current |
6 A(RMS)@110 VAC 3 A(RMS)@220 VAC | ||||||||||||||
| Inrush Current |
60 A Max for 110 VAC 80 A Max for 220 VAC | ||||||||||||||
| Voltage | Min. Load | Max. Load | Ripple and Noise | ||||||||||||
| +5 | 3 A | 25 A | 50 mV P-P | ||||||||||||
| +12 | 2 A | 16 A | 120 mV P-P | ||||||||||||
| -5 | 0 A | 0.5 A | 150 mV P-P | ||||||||||||
| -12 |
0 A |
0.5 A | 150 mV P-P | ||||||||||||
| +3.3 | 1 A | 18 A | 50 mV P-P | ||||||||||||
| +5 Vsb | 0.1 A | 2 A | 60 mV P-P | ||||||||||||
|
*Total current of +5 V and + 3.3 V not exceed 35 A *Total current of +5 V , +3.3 V and +12 V not exceed 282 W | |||||||||||||||
| Over-voltage Protection |
+12 V : 13 V ~ 14.6 V +5 V : 5.7 V ~ 6.6 V +3.3 V : 3.9 V ~ 4.3 V | ||||||||||||||
| Short Circuit Protection |
Shut down and latch off | ||||||||||||||
| Efficiency |
65 % Min | ||||||||||||||
| MTBF |
160,000 hours | ||||||||||||||
| Temperature |
Operating : 0 ˚C~50 ˚C Storage : -20 ˚C~ 80 ˚C | ||||||||||||||
| Dimensions |
185 x 150 x 86 (mm) 7.28 x 5.91 x 3.39 (inch) | ||||||||||||||
| Output Connector |
20+4PIN ATX x1, 4PIN 12V CPU x1, HDD/ CDROM x8, FDD x2, SATA x2, Buzzer Reset x1, T.T.L signal x1, LED power x1 | ||||||||||||||
Ordering Information:

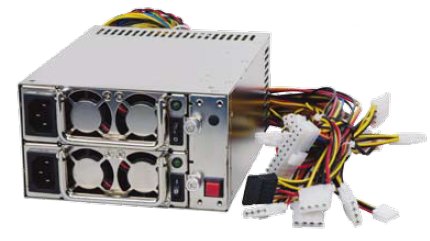

ACE-R4130AP-RS 300 W Mini Redundant ATX Power Supply, with PFC
ACE-R4130AP1-RS 300 W AC-DC ATX Redundant module, for ACE-R4130AP, with PFC
