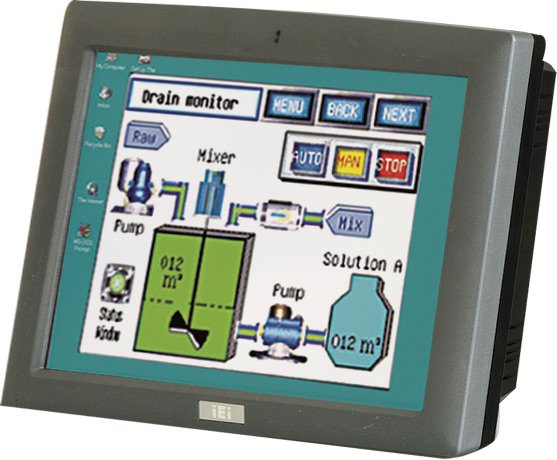

- All-in-one panel pc
-
Fanless system
-
Rugged design
-
Anti-vibration protection
-
WIFI & Bluetooth
-
IP 64 dustproof and waterproof front panel
IEI IQ mount design allows the AFOLUX series to be easily integrated into a diverse variety of applications. The arm design can be used for industrial controls, the panel mount for kiosk devices, the wall mount for e-home terminals and the stand design for thin client applications.
| LCD Size | 10.4" |
| Max.Resolution | 800x600 |
| Brightness | 400 cd/m² |
| LCD Color | 262K |
| Pixel Pitch(mm) |
211.2(H) x 158.4(V) mm |
| Contrast Ratio | 500:1 (Typ.) |
| View Angle H-V | 120(H)x100(V) |
| Backlight MTBF | 50000hrs |
| SBC/CPU |
AFLMB-LX800 / CPU AMD Geode™ LX 800 (500MHz) |
| Chipset |
AMD Geode™ LX 800 + AMD Geode™ CS5536 |
| RAM |
Supports one 1GB (maximum) 333MHz or 400MHz DDR SO-DIMM |
| Watchdog timer |
Software programmable supports 1~255 sec. System reset |
| I/O Ports |
1 x RS-232 COM port 1 x RS-232/422/485 COM port 2 x RJ-45 for 10/100Mbps LAN 2 x USB 2.0 1 x Power Switch 1 x Reset Button |
| Audio |
AMP 1.5W + 1.5W |
| Touchscreen |
Resistive Type 5-Wire (touch controller IC is on board) |
| Expansion Slot |
1 x Wireless LAN Module (Mini PCI Interface ), 1 x Bluetooth Module (USB Interface, Bluetooth V2.0) |
| HDD Drive Bay | N/A |
| SSD |
CF Type II slot |
| Contruction front panel |
ABS + PC Plastic front frame, Gray color 7539U |
| Power adapter |
P/N: 63000-FSP0361AD101C-RS Power: 36W Input: 90VAC~264VAC @ 50/60Hz Output:12VDC |
| Power consumption |
12V/25W |
| Mounting |
Panel, Wall, Rack, Stand or Arm VESA 75mm x 75mm |
| Front Panel Protection | meets IP64 |
| Operation Temperature | 0~50ºC |
| Dimension(WxDxH) mm |
276 x 227 x 50.7 |
| EMC/Safety |
CE, FCC Class B,and CCC / UL, CB |
| Weight | 1.4kg |
Ordering Information:
AFL-10A-LX/WT-R/256MB/**(GPRS01) 10.4", 400cd/m² SVGA fanless panel PC with AMD Geode™ LX 800 CPU, 256MB DDR RAM, 802.11b/g wireless module, Bluetooth module and touch screen, RoHS
AFL-10A-LX/WT-R/512MB/**(GPRS01) 10.4", 400cd/m² SVGA fanless panel PC with AMD Geode™ LX 800 CPU, 512MB DDR RAM, 802.11b/g wireless module, Bluetooth module and touch screen, RoHS
