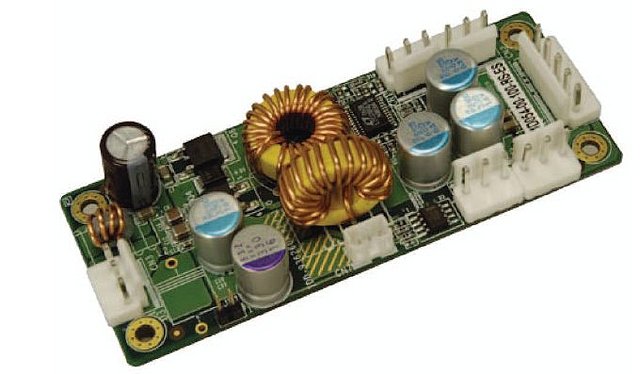

IDD-936260A 60W DC/DC 9-36V Input; 12V/5V/5VSB Output
- small size-factor
- wide input range 9 to 36VDC
- output 5V/12V/5VSB
- AT or ATX Mode On/Off
- fanless solution
- Up to 90% Efficiency
- RoHS Compliant
- designed for vehicle applications
| Input | 9 to 36VDC | |
| Output | 12V@3A (Max.), 5V@10A (Max.) & 5VSB@0.5A (Max.) Max. Total Output: 60W | |
| Performance Characteristics | Noise & Ripple: <240mV Line Regulation: <50mV Load Regulation: <100mV Efficiency: Up to 90% | |
| Operating temperature | -20º C to +70ºC | |
| Dimmensions | 40mm x 100mm | |
| Weight | 58g | |
Ordering Information:
IDD-936260A-R10 60 W DC/DC 9~36 V input; 12 V, 5 V & 5 VSB output
CB-5PSBC-RS 20 cm cable to SBC power input
CB-JST3PSW-RS 30 cm cable oN/off switch
CB-JST3P001-RS 30 cm 5 VSB, PS_ON wire to SBC
CB-3PSATA-RS 10 cm cable for SATA power
CB-3PIDE-RS 10 cm cable for IDE HDD power
CB-P1LP4-RS 20 cm cable for FSP0601AD101C 60 W/ UP0451E12P 45 W/UP0251E12PL 25 W AC-DC adapter
CB-MD4P4-RS 20 cm cable for 63000-FSP120AAB-RS 120 W AC-DC adapter
CB-NOLP4-RS 20 cm cable for terminal block DC input
IDD-936260A_Datasheet.pdf (281kB)
