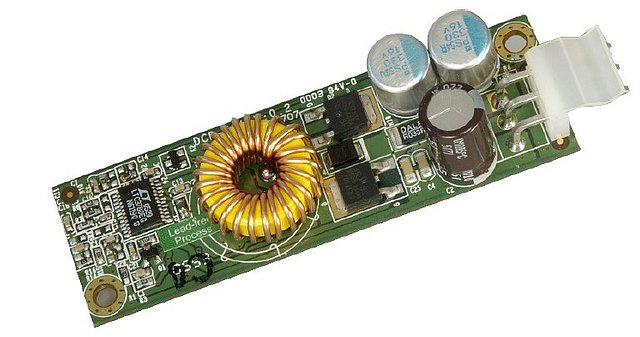

IDD-936160 60W DC/DC 9-36V Input; 12V/5A Output
- small size-factor
- wide input range 9 to 36VDC
- output 12V/5A
- fanless solution
- designed for vehicle applications
| Input | 9 to 36VDC | |
| Output | 60W, 12V/5A | |
| Performance Characteristics | Noise & Ripple: <3000mV Line Regulation: <300mV (at full loaded) Load Regulation:<85mV (at Vin 9-16V) Efficiency: Min. 95% |
|
| Operating temperature | -40º C to +85ºC | |
| Dimmensions | 82(W) x 25(L) x 20(H) mm | |
| Weight | 28g | |
Ordering Information:
IDD-936160-R10 60 W DC/DC 9~36 V input; 12 V output
IDD-936160_dc_inverter.pdf (392kB)
IDD-936160_QIG.pdf (131kB)
