| • | World’s fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection) |
| • | Open-Ring supports in open architecture (recovery time is depended on the other vendor’s ring technology) |
| • | O-RSTP supports applications of complex topology with optimized RSTP technology |
| • | MSTP/RSTP/STP(IEEE 802.1s/w/D) |
| • | IGMP snooping for filtering multicast traffic |
| • | Port Trunking for easy bandwidth management |
| • | SNMP v1/v2c/v3 support for secured network management |
| • | RMON for traffic monitoring |
| • | Event notification through Syslog, Email, SNMP trap, and Relay Output |
| • | Port lock to prevent access from unauthorized MAC address |
| • | Windows utility (Open-Vision) supports centralized management and confi guration by Web-based ,Telnet, Console, CLI |
| • | Triple redundant DC power inputs of terminal block and power jack |
| • | Complete combination of 10/100Base-T(X), 100Base- FX, 1000Base-T, 1000Base-SX, and 1000Base-LX ports |
| • | Very wide operating temperature range from -40°C to 70°C |
| • | Rigid IP-30 housing design |
| • | DIN-Rail and panel mounting enabled |

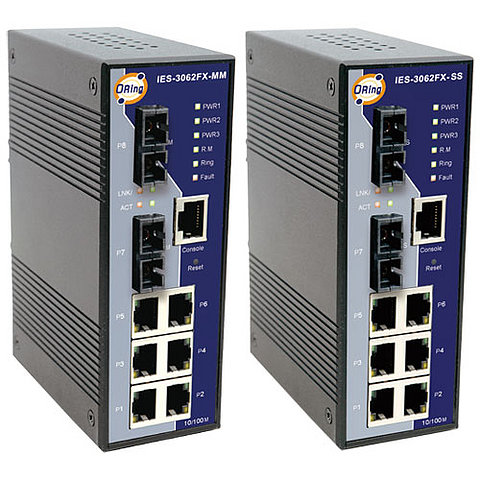

IES-3080/3062 series is managed Redundant Ring Ethernet switch with 6x10/100Base-T(X) & 2x100Base-FX, 1000Base-T, 1000Base-SX or 1000Base-LX ports. With complete support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP(IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology. Another Open-Ring technology also supports other vendor's proprietary ring.
IES-3080/3062 series can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -40°C to 70°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choices for highly-managed and Fiber Ethernet application.
Ordering information:
| IES-3062FX-MM-SC | Industrial 8-port Managed Ethernet Switch with 6x10/100TX & 2x100FX (Multi-mode) |
| IES-3062FX-SS-SC | Industrial 8-port Managed Ethernet Switch with 6x10/100TX & 2x100FX (Single-mode) |
