| • | World’s fastest Redundant Ethernet Ring : O-Ring (recovery time < 10ms over 250 units of connection) |
| • | Open-Ring supports the other vendor’s ring technology in open architecture |
| • | O-RSTP supports applications with complex topology |
| • | STP/RSTP/MSTP supported |
| • | IGMP snooping for filtering multicast traffic |
| • | Port Trunking for easy bandwidth management |
| • | SNMP v1/v2c/v3 support for secured network management |
| • | RMON for traffic monitoring |
| • | Event notification through Syslog, Email, SNMP trap, and Relay Output |
| • | Port lock to prevent access from unauthorized MAC address |
| • | Windows utility (Open-Vision) supports centralized management and configuration by Web-based ,Telnet, Console, CLI |
| • | Dual redundant DC power inputs of terminal block |
| • | Support 3 Gigabit combo port |
| • | Very wide operating temperature range from -10°C to 60°C |
| • | Rigid IP-30 housing design |
| • | DIN-Rail and panel mounting enabled |

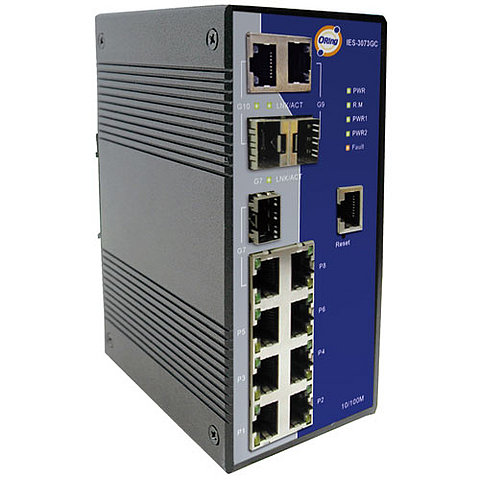

IES-3073GC is managed Redundant Ring Ethernet switch with 7x10/100TX ports & 3x1000 combo ports. With completely support of Ethernet Redundancy protocol, O-Ring (recovery time < 10ms over 250 units of connection), Open-Ring, O-RSTP and MSTP/RSTP/STP (IEEE 802.1s/w/D) can protect your mission-critical applications from network interruptions or temporary malfunctions with its fast recovery technology.
All function of IES-3073GC can be managed centralized and convenient by a powerful windows utility — Open-Vision. In addition, the wide operating temperature range from -10°C to 60°C can satisfy most of operating environment. Therefore, the switch is one of the most reliable choice for highly-managed and Fiber Ethernet application.
Ordering information:
| IES-3073GC | Industrial 10-port Managed Ethernet Switch with 7x10/100TX + 3xGigabit combo ports |
