PAC-400G 5-slot Compact Chassis for Half-size SBC
- RoHS compliant design

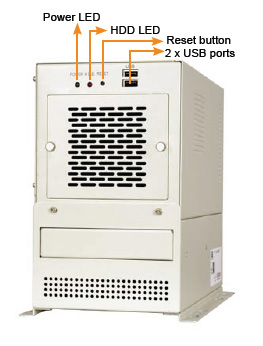

- 2 x front-accessible USB ports
- 1 x 8cm hot replaceable fan

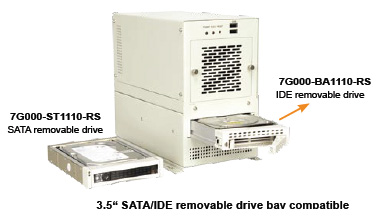

- Supports 1 x 3.5" internal HDD or 1 x 3.5" removable drive(optional)
- Supports Pentium® 4 half-size CPU card
| Construction | Heavy duty metal | |
| SBC Form Factor | Half-size, slot SBC | |
| Drive Bays | 1 x 3.5" HDD | |
| Cooling Fans | 1 x 8 cm | |
| I/O Ports | 2 x USB | |

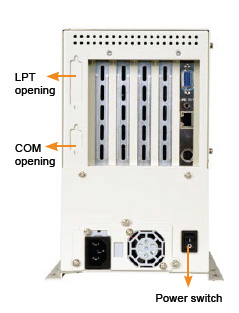

| I/O openings | 1 x LPT , 1 x COM | |
| Expansion Slots | 5 slots | |
| Indicators | Power, HDD | |
| Buttons | Power switch, reset | |
|
Operating Temperature |
0~50°C | |
| Operation Humidity | 10% ~ 90% | |
| Colors | W: White | |
| Weight (Net/Gross) | 3.8kg / 5.6kg | |
| Dimensions (DxWxH) | 269mm x 140mm x 230.5mm | |
PAC-400G_Datasheet.pdf (282kB)
