- Real-time MPEG-4/JPEG selectable
- Max.VGA 30fps(N)/Max.VGA 25fps(P) image transmission
- Bi-directional audio support
- High resolution image :
704x480, 704x240, 352x240(N)
704x576, 704x288, 352x288(P) - Static/Dynamic IP support
- Ethernet 10/100 Base-T capability
- TCP/IP, DHCP, HTTP, DDNS etc Protocol
- FTP server & E-mail notification
- 1/3ˇ±Super HAD color CCD with 410K pixels(N), 470K pixels(P)
- High resolution of 530TV lines of a composite output
- Day & Night with ICR
- Removed noise & Ghost images with SSNR
- 4 Privacy zone masking
- Motion detection
- PoE(Power over Ethernet)
- Dual voltage : 24V AC / 12V DC
- Network Manager / Web viewer support

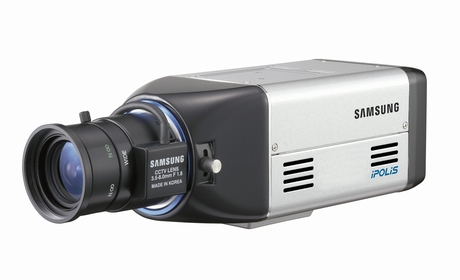

The SNC-550 facilitates the selective application of MPEG-4 or JPEG compression algorithms and high-resolution video transmission at up to 30fps. The SNC-550 supports diverse additional functions including a Day & Night function, 530TV lines of horizontal resolution, PoE, motion detection, and privacy masking.
Model:
SNC-550(N)
SNC-550(P)
|
Power Source |
12V DC / 24V AC (±10%) / PoE (IEEE 802.3af) |
|
Power Consumption |
6W |
| CPU | SAMSUNG ARM CPU (200MHz) |
| OS | Embedded Linux |
|
CCD |
1/3 inch, Super HAD CCD |
| Horizontal Resolution | Color : 530TV lines (Min.) / B/W : 570TV lines (Min.) through BNC |
| Min. Illumination |
0.3Lux F1.2 (Normal color mode) 0.01Lux F1.2 (B/W mode) 0.002Lux F1.2 (Sens-up mode) |
| Day & Night | Off / Auto selectable (ICR filter change) |
| White Balance |
ATW / AWC / Manual selectable (1,800°K ~ 10,500°K) |
| Sens-Up |
On / Off (Selectable limit 2X ~ 128X) |
| SSNR | Low / Middle / High / Off selectable |
| Lens | C / CS-Mount (Easy focus type) |
|
Compression Method |
MPEG-4 / JPEG selectable video compression, ADPCM audio compression |
|
Compression / Transmission Speed |
Video : Max. VGA 30fps for SNC-550(N) Video : Max. VGA 25fps for SNC-550(P) |
| Image Quality Control |
5 levels |
| Audio Input / Output | 1/1 |
| Internet Browser |
MS Internet Explorer ver 5.5 or higher |
|
Resolution |
for SNC-550(N) 704 x 480, 704 x 240, 352 x 240 for SNC-550(P) 704 x 576, 704 x 288, 352 x 288 |
|
Security |
Password (User authentification), Control message encryption |
|
DIO Supports |
1 Sensor input, 1 Alarm output |
| Pan / Tilt / Zoom Control | Support (RS-485) |
| User Connection | 20 Users |
| Protocol Supported | TCP/IP, DHCP, HTTP, SMTP, FTP, DDNS, PPPoE, NTP |
| Misc. Function | Motion detection, Privacy masking,
Event / Alarm, FTP / E-mail notification |
| System Resource | 32Bit RISC processor, 64MB SDRAM, 64MB flash, 512KB ROM |
| Network Interface |
10/100 Base-T Ethernet using RJ-45, Static / Dynamic IP support |
| Viewer Application |
Network management software / Web viewer |
| DDNS | Support (xDSL, DHCP, Cable modem, etc) |
| SDK | 3rd Party SDK support |
| Operating Temperature |
0°C ~ +00°C |
| Dimension |
68.8(W) x 60.4(H) x 152(D)mm |
| Weight |
570g |
PoE (Power over Ethernet) support
Since power is supplied through the LAN cables, there will be less complicated cabling and the installation cost will be substantially reduced (IEEE 802.3af).
Powerful ultra-low sensitivity of as low as 0.002Lux
The SNC-550 provides a powerful night surveillance function that can recognize objects at night with an illumination of as low as 0.002Lux in Sens-up mode.
Day & Night (Removable IR cut filter) and SSNR (Samsung Super Noise Reduction)
The high performance Day & Night function, with an automatic filter removal method and SSNR technology that effectively eliminatesnoise and ghosting,provides clearer imagequality.
Analogue output support
Besides network output, the SNC-550 also supports analogue output through BNC connectors.
|
