- PC AT bus
- 8-CH SPDT (Form C) & 8-CH SPST (Form A) relays
- Nonlatching relays
- On-board LED indicators for relay status
- On-board relay driving circuits
- Relay output status read back
- 16-CH isolated digital inputs
- On-board low-pass filtering for digital inputs
Kompletný zoznam kariet ISA, PCI, PCI Express® PC/104+, CompactPCI, and PXI, DAQ a DIO modulov s možnosťou výberu a porovnania parametrov môžete nájsť cez DAQ selector...

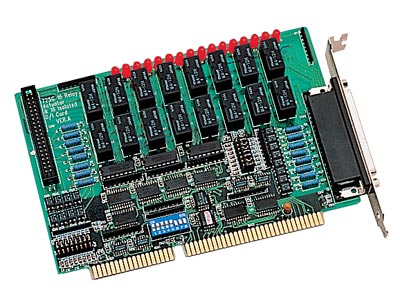

ADLINK ACL-7225 provides 16-CH relay outputs and 16-CH isolated digital inputs. Eight of the relays are SPDT (Form C) and eight are SPST (Form A), which are suitable for device connection with ON/OFF control. The status of each relay output is represented by an on-board LED. When the relay is energized, its corresponding LED will turn ON, otherwise it is OFF. All of the digital input channels are non-polarity and optically isolated. Users can set for each digital input by using RC filter or not. The device is suitable for collecting digital inputs in noisy environments.
Ordering Information
ACL-7225 16-CH Relay Outputs & 16-CH Isolated DI Card
Associated Software
ACLS-LVIEW V3.12 LabVIEW™ Interface for NuDAQ ISA-bus of Data Acquisition Cards
