High Speed Link - Real-time Distributed I/O
|
||
|
||
|

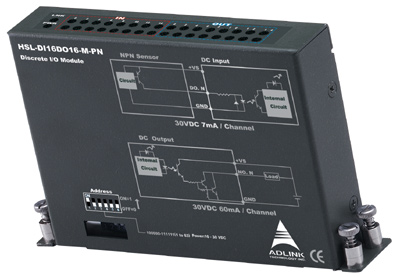

HSL-DI16DO16 M-NP/PN/PP 16-CH Discrete Input 16-CH Discrete Output Module
- Slave ID consumption: 1
- 16-CH digital input and 16-CH digital output -NN: for NPN sinking type sensor input or dry contact and NPN sinking type output
- Photo couple isolation voltage: 2500Vrms
- Input impedance: 4.7KΩ
- Input current: 10mA(Max) , 12.5mA(Peak)
- Input voltage: 40V (Max)
- Output switching capacity: Single channel 500mA; all channels 60mA at 24VDC
- Output response time: ON/OFF: 180µs,OFF/ON: 1.2µs
Ordering Information:
HSL-DI16DO16-M-NP 16-CH Discrete Input 16-CH Discrete Output Module
HSL-DI16DO16-M-PN 16-CH Discrete Input 16-CH Discrete Output Module
HSL-DI16DO16-M-PP 16-CH Discrete Input 16-CH Discrete Output Module
