- Supports a 32-bit 5 V PCI bus
- 8-CH relay outputs on PCI-7250
- 8-CH isolated DI
- On-board LED indicators for relay status
- On-board relay driving circuits
- Relay output stats read back
- On-board low-pass filtering for DI
- PCI-7250 extendable up to 32-CH relay outputs & 32-CH DI with three PCI-7251
Kompletný zoznam kariet ISA, PCI, PCI Express® PC/104+, CompactPCI, and PXI, DAQ a DIO modulov s možnosťou výberu a porovnania parametrov môžete nájsť cez DAQ selector...
Ordering Information

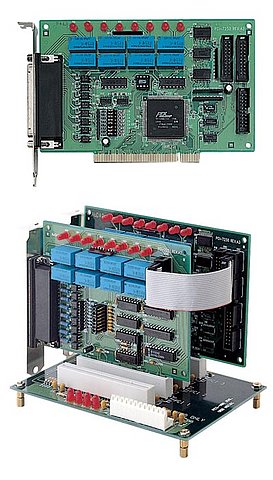

PCI-7250 8-CH Relay Outputs & 8-CH Isolated DI Card
PCI-7251 8-CH Relay Outputs & 8-CH Isolated DI Extension Card for PCI-7250
Associated Software
DAQBench English V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Simplified Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
DAQBench Traditional Chinese V2.42 32-Bit ActiveX Controls for Measurement and SCADA/HMI
PCIS-OCX V2.41 ActiveX Controls for ADLINK Devices
DAQ-LVIEW PnP V1.24 LabVIEW PnP interface for ADLINK Data Acquisition Cards
PCIS-MTLB V1.0 MATLAB Interface / MATLAB for NuDAQ PCI-bus of Data Acquisition Toolbox Adapter
PCIS-OPC V2.1 OPC 2.1Compliant Servers for ADLINK Hardware Devices
PCIS-VEE V3.21 VEE ™ Interface
DAQ-MTLB V1.0 MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards
