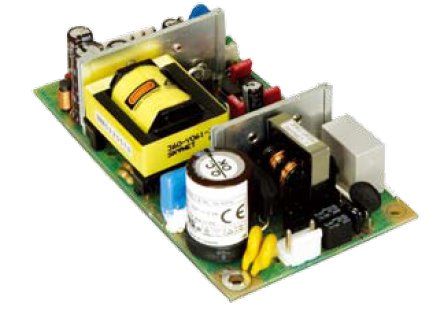

ACE-706AM 51~80 W AC-DC Open Frame Medical AT Power Supply
Only 1.28 inch height
4.2 Watt per cubic inch
Meets ITE and medical safety standards
High efficiency 82%
Operation from 0°C to 70°C by convection
Single side PCB for low assembly cost
|
Voltage |
90 ~ 264 VAC Full Range | ||||||
| Frequency |
47 Hz ~ 63 Hz | ||||||
|
Input Current |
2 A(RMS)@115V 1 A(RMS)@230V | ||||||
|
Inrush Current |
30 A Max for 115VAC 60 A Max for 230VAC | ||||||
| Voltage | Min. Load | Max. Load |
Ripple & Noise |
||||
|
|
+5 V | 0 A | 4.5 A | 1% | |||
| +12 V |
0 A |
3 A |
1% | ||||
| -12 V | 0 A | 0.3 A | 1 % | ||||
|
Overvoltage protection |
latch off | ||||||
|
Short Circuit protection |
auto recovery | ||||||
| Watt | 5 1W-80 W | ||||||
|
Hold-up time |
16 ms Min. | ||||||
|
Efficiency |
82% | ||||||
|
Temperature |
Operation:0 ˚C~ 70 ˚C Storage : -40 ˚C~ 85 ˚C | ||||||
| MTBF (hrs) |
100,000 hours | ||||||
|
Outline Connector |
Optional Cable | ||||||
| Dimensions |
63.5 X 114.3 X 32.4 (mm) 2.5 X 4.5 X 1.28 (inch) | ||||||
Ordering Information:
ACE-706AM-RS 51~80W AC-DC Open Frame Medical AT Power Supply. RoHS
ACE-706AM_Datasheet.pdf (238kB)
