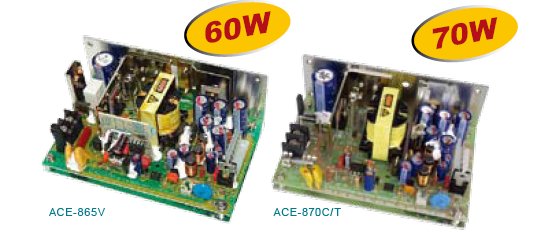

ACE-865V/ACE-870C/ACE-870T DC Input Open Frame
  • High efficiency
  • Low Ripple and Noise
  • Short circuit , Overload , Over voltage Protected
  • Power 60 W and 70 W

    • Input Type

    8 ~ 16 VDC (ACE-865V), 18 ~ 36 VDC (ACE-

    870C), 36 ~ 72 VDC (ACE-870T)

    Output Voltage +3.3 V  +5 V  +12 V  -5 V  -12 V  +24 V

    ACE-865V

    		    6 A  2 A  0.3 A  0.5 A

    ACE-870C/T

    		    7 A  2.5 A  0.3 A  0.5 A

    Efficiency

    70%

    Temperature

    Operating : -20 ˚C~ 50˚C

    Storage : -20 ˚C~ 85 ˚C

    MTBF (hrs)

    246,000 (ACE-865V), 276,000 (ACE-870C/T)

    Output Connector

    Options Cable

    Dimensions

    127 x 81 x 50 (mm)





    Ordering Information:



    ACE-865V-RS 60W 12V DC Input Open Frame AT Power Supply

    ACE-870C-RS 70W 24V DC Input Open Frame AT Power Supply

    ACE-870T-RS 70W 48V DC Input Open Frame AT Power Supply
