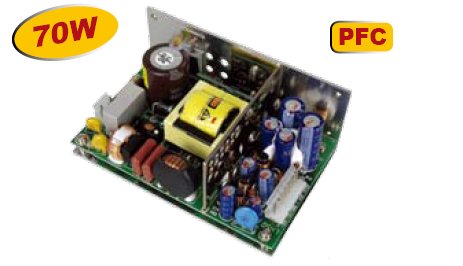

ACE-870A/ACE-870AP 70 W AC-DC Open Frame AT Power Supply
|
Input Type |
85 ~ 264VAC Full Range | ||||||
| Output Voltage | +3.3 V | +5 V | +12 V | -5 V | -12 V | +24 V | |
|
|
7 A | 2.5 A | 0.3 A | 0.5 A | |||
|
Efficiency |
70% | ||||||
|
Temperature |
0 ~ 50˚C (Operating), -20 ~ 85˚C(Storage) | ||||||
| MTBF (hrs) |
296,000(ACE-870A) , 238.000(ACE-870AP) | ||||||
| Output Connector |
Options Cable | ||||||
| Dimensions |
127 x 81 x 50 mm | ||||||
Ordering Information:
ACE-870A-RS 70W AC-DC Open Frame AT Power Supply
ACE-870AP-RS 70W AC-DC Open Frame AT Power Supply, with PFC
ACE-870A_AP_Datasheet.pdf (292kB)
