Industrial PC PS/2 ATX, AC Input
|
||
|
||
|

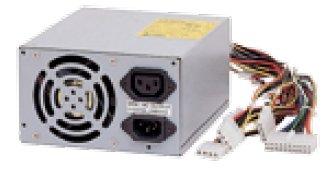

ACE-828A PS/2 280W AC Input ATX Type
- 100% Meet RoHS Compliance
- Full functional over voltage / current protection
- Multiple safety / EMC certificated
- Power 280W
|
Input Type |
90 ~ 130VAC,180 ~ 260VAC Auto Range | |||||||
|
Output Voltage |
+3.3 V |
+5 V | +12 V | -5 V | -12 V | +5 Vsb | ||
|
8A |
25A (2A min) |
10A (0.1A min) |
0.5A | 0.5 A | 0.72A | |||
| Efficiency |
65% | |||||||
| Temperature |
Operating : -20 ~ 70˚C (40 ~ 70˚C derating curve) Storage : -40 ~ 75˚C | |||||||
| MTBF (hrs) | 110,000 | |||||||
| Output Connector |
20PIN ATX x1, HDD/CDROM x5, FDD x2 | |||||||
Ordering Information:
ACE-828A-RS 280W AC-DC PS/2 ATX Power Supply
ACE-828A_Datasheet.pdf (236kB)
