- 12-bit A/D resolution
- Up to 100 kS/s sampling rate
- 16-CH single-ended or 8-CH differential inputs
- Bipolar or unipolar analog input ranges
- Programmable gains, x0.5, x1, x2, x4, x8 (ACL-8112DG), x0.5, x1, x5, x10, x50, x100, x500 (ACL-8112HG), and x1, x2, x4 , x8, x16 (ACL-8112PG)
- Automatic analog input scanning
- DMA for analog inputs
- 2-CH 12-bit multiplying analog outputs
Kompletný zoznam kariet ISA, PCI, PCI Express® PC/104+, CompactPCI, and PXI, DAQ a DIO modulov s možnosťou výberu a porovnania parametrov môžete nájsť cez DAQ selector...

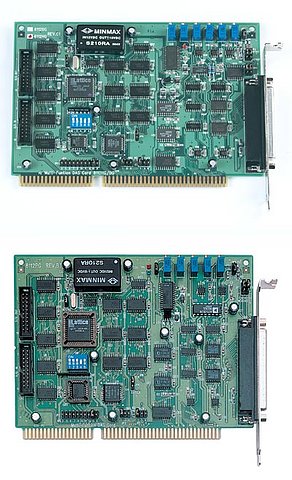

ADLINK ACL-8112 is a high performance, high speed multi-function data acquisition card for IBM PC or compatible computers.The ACL-8112 series is designed to combine all data acquisition functions, such as A/D, D/A, DIO and timer/counter into a single board, The high-end specifications of the card makes it ideal for a wide range of applications requiring high speed. The ACL-8112HG provides special high-gain programmable instrument amplifier for low level input applications, such as measurement of thermo-coupling signals. The ACL-8112 devices all provide high speed sampling rate up to 100 kS/s at all gains. The ACL-8112PG features 16 single-ended inputs and bipolar inputs, while the ACL-8112DG and ACL-8112HG feature 16 single-ended or 8 differential inputs. All ACL-8112 devices also feature 2 12-bit double-buffered analog outputs, 16 digital inputs and 16 digital outputs, and one general purpose timer/counter.
Ordering Information:
| ACL-8112PG | 16-CH 12-Bit 100 kS/s Multi-Function DAQ Card |
| ACL-8112DG | 16-CH 12-Bit 100 kS/s Normal Gain Multi-Function DAQ Card |
| ACL-8112HG | 16-CH 12-Bit 100 kS/s High Gain Multi-Function DAQ Card |
Associated Software:
| ACLS-LVIEW | LabVIEW™ Interface for NuDAQ ISA-bus of Data Acquisition Cards |
