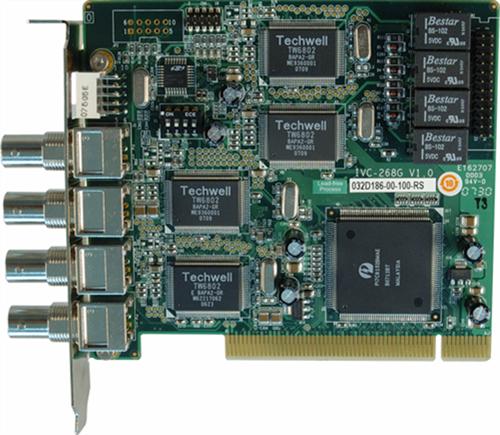

IVC-268G Low Power Real Time Video/Audio Capture Card
- Ultra Low Power consumption, only 0.4W for 30fps@D1 per channel
- 30fps/ch at all resolutions with audio capturing
- 4 x GP input and 4 x GP output with I/O kit in packing
- Drivers including Windows 2000/XP and Linux kernel 2.6 available
|
Video Input |
4 channels composite video NTSC/PAL/SECAM auto sensing | |
|
Video Connector |
BNC | |
| Audio Input | 4 channel analog audio | |
| Audio Connector | Audio kit with 3.5mm audio jack connector | |
| PCI Interface | PCI 2.1 compliance | |
| Card ID | selectable with LED for ID indication | |
| Alarm I/O | GPIO daughter board with 4 inputs and 4 outputs | |
| Video Engine | 4 x Techwell 6802 | |
| Resolution |
NTSC: PAL / SECAM: | |
| Frame Rate | NTSC: Total 120fps@D1 for 4 channels PAM/SEACAM: 100fps@D1 for 4 channels | |
| System | X86 PC compatible computer | |
| Graphic | DirectX Compatible VGA card with YUV overlay mode supporting | |
| Device Driver | Windows 2000, XP Linux Kernel 2.6 | |
| SDK | Provide SDK and demo program with sample source code in C++ | |
| Dimensions | 119.91mm x 106.68mm | |
| Operation Temperature | 0~60℃(32~140℉), non-condensing | |
| Power Consumption | 2.7W, 540mA@5V | |
