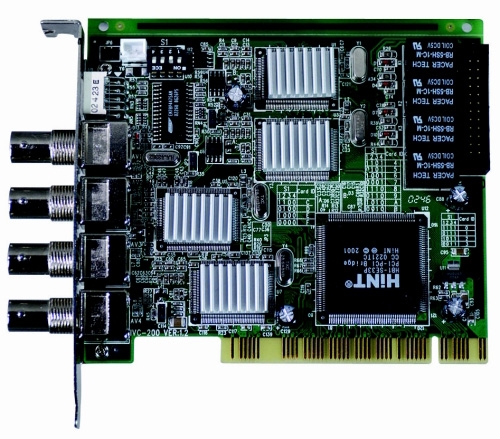

IVC-200/200G 4 channels video capture card (120 FPS) with GPIO
- Pain-free extension for multi-card system:
When starting out with a DVR system, it can be surprising just what level of growth your surveillance system will reach. By choosing the IVC-100G, you can expand your surveillance area with no extra reconfiguration of your DVR system. As long as you have a free extension slot for accommodating new cards, you can easily add more "eyes" watching herever you most need them. - Smart ID number for easy system maintenance:
With an LED attached to each IVC-100G, you can assign a unique number to each card in your DVR system with which to associate the surveillance area. Should something go wrong in a specific area, you can easily check out the system and replace it with a new card. - Linux Application Development Support
By offering system integrators a Linux driver and SDK, QNAP has established a foundation for customers to develop competitive applications both quickly and cost-effectively. - General Purpose Input Output (GPIO):(Optional)
The GPIO connector allows users to connect external I/O devices such as a sensor, light, alarm, switch, etc... for any kind of external control that may be required. - GPIO Application
For example, you can control the spotlight over a doorway at nighttime via the GPIO connection whenever the motion detector has been triggered. Then you don't have to worry about the recording quality when someone intrude the surveillance area at night time.
4 channels video capture card (30 FPS) with GPIO module. Fuillfill your basic need for surveillance. By adopting IVC-100/G,you can save your money for baseline quality of surveillance video about 30 frames per second maximally shared by four channels.
|
Hardware |
Function | |
|
Input / Output Interface |
Video Inputs (x4) - BNC Connector | |
| Functionality Support | Multiple Video Resolutions NTSC: 720x480, 704x480, 640x480, 352x240, 320x240, 176x112 PAL: 720x576, 704x576, 640x576, 352x288, 320x288, 176x144 Capture Frame Rate - Max 120 fps for 4 channels Support Video Loss Detection Multi-screen support Support image brightness, contrast, and saturation adjustment LED for card ID configuration and identification Software Support Provide WDM driver and SDK for developer | |
| Supporting OS | Windows 98 SE, ME, 2000, XP, Linux | |
| Operating Temperature | 0~ 50oC | |
| Power Consumption | 3.5W@5V | |
| Board Size | 120.19mm x 100mm | |
ivc200.pdf (1065kB)
