MSM586SL/SEL 133 MHz 4xCOM 1xLAN 2xUSB
  • Control tasks
  • Remote controller (LAN, RS232)
  • Intelligent IO
  • Multi-serial protocol computer

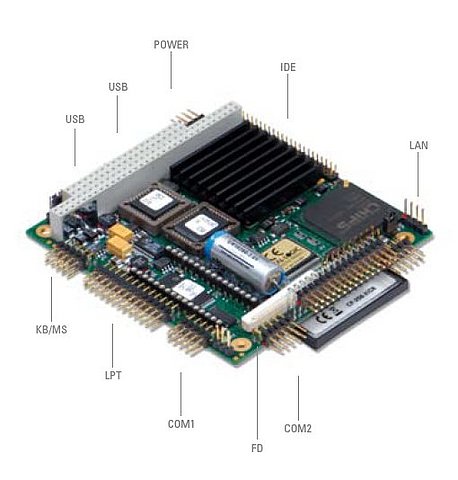

The MICROSPACE® MSM586SL/SEL has all of the PC standard

interfaces plus 4 serial interfaces (4x RS232/422/485), ethernet LAN

and DiskOnChip socket (DOC) for a solid state disk. The permanently

soldered-on memory of the MSM586SL makes the embedded

computer extremely robust. The PC/104 bus (ISA) is available

as a functional extension. The 4W power consumption permits

passive cooling within a very broad ambient temperature range.


Type

MSM586SL

MSM586SEL
CPU

AMD ELAN520

ISA-BUS

8/16-Bit

PCI-BUS

-

PCI Express-BUS

-

2nd Level cache

-

Performance (MHz)

133

133

DRAM Min-Max (MB)

32-64 soldered

32-128, SODIMM

CompactFlash socket

yes (type 1)

Keyboard, mouse (PS/2)

yes

Boot drive

FD, HD, DOC

Floppy interface

yes

IDE interface P-ATA

1x

IDE interface S-ATA

-

COM1

RS232C/RS422/485

COM2

RS232C/RS422/485

COM3

RS232C/RS422/485

COM4

RS232C/RS422/485

LPT1

yes

 yes
USB

-

 2x
LAN port 1

-

LAN-Port 2

-

Audio

-

Video controller

-

Video memory (MB)

-

LCD interface

-

DVI interface

-

CRT interface

-

Video input

-

Watchdog

yes

Power normal

type 5V/0.7Amp.

Power suspend

-

Power management

-

RTC battery onboard

400mAh

Cooling type

passive

Operating temperature

-25°C to +70°C

Extended operating temperature (E48)

-40°C to +85°C

Size (W x L in mm)

90 x 96

Weight

80 g

MTBF

>200'000h

Special features 1

DOC-socket 32pin

Special features 2

soldered RAM

 -

Special features 3

-

Part no.

801344 (with 32MB) / 801345 (with 64MB)

801380 (without SDRAM)





Ordering Information:



Option/accessories

No.

Description

Option: -R1

807331

Option COM1 as RS485/422 Halfduplex

Option: -R2

807332

Option COM2 as RS485/422 Halfduplex

Option: -R3

807333

Option COM3 as RS485/422 Halfduplex

Option: -R4

807334

Option COM4 as RS485/422 Halfduplex

MSM-CK

802605

PC/104-cable kit

MSFLOPPY

891001

3.5" Micro-Floppy drive (26pin)

MSFDCK

802600

Micro-Floppy cable (26pin)
