- Supports a 32-bit 5 V PCI bus,
- 16-bit A/D resolution
- Up to 100 kS/s sampling rate (PCI-9114DG and PCI-9114HG)
- Up to 250 kS/s sampling rate PCI-9114A-DG and PCI-9114A-HG)
- 32-CH single-ended or 16-CH differential analog inputs
- Bipolar or unipolar analog input ranges
- On-board 1 k-sample A/D FIFO
- Programmable gains: x1, x2, x4, x8 (PCI-9114DG and PCI-9114A-DG), and x1, x10, x100 (PCI-9114HG and PCI-9114A-HG)
Kompletný zoznam kariet ISA, PCI, PCI Express® PC/104+, CompactPCI, and PXI, DAQ a DIO modulov s možnosťou výberu a porovnania parametrov môžete nájsť cez DAQ selector...

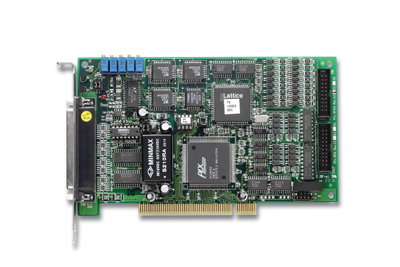

ADLINK PCI-9114 series are 32-CH, 16-bit, high resolution multi-function DAQ Cards. The PCI-9114 device features flexible configurations on analog input. The devices are divided into 2 kinds: normal gain version and high gain version. Both versions provide 4 programmable input ranges for bipolar and unipolar inputs. The A/D on the PCI-9114DG/HG device features a sampling rate of 100 kS/s with resolution at 16 bits, while PCI-9114A-DG/HG device features a sampling rate of up to 250kS/s with resolution at 16 bits. The device supports automatic analog input scanning, and offers a differential mode for 8-CH analog inputs and maximum noise elimination, as well as single-ended modes for 16- CH analog inputs. The PCI-9114 also features 1-CH 16-bit general purpose timer/counter, 16-CH TTL isolated digital inputs and 16-CH TTL isolated digital outputs. ADLINK PCI-9114 delivers cost-effective and reliable data acquisition capabilities and is ideal for a broad variety of applications.
Ordering Information:
| PCI-9114DG | 32-CH 16-bit 100 kS/s Normal Gain Multi-Function DAQ Card |
| PCI-9114HG | 32-CH 16-bit 100 kS/s High Gain Multi-Function DAQ Card |
| PCI-9114A-DG | 32-CH 16-bit 250 kS/s Normal Gain Multi-Function DAQ Card |
| PCI-9114A-HG | 32-CH 16-bit 250 kS/s High Gain Multi-Function DAQ Card |
Associated Software:
| DAQBench 2.43 | V2.43,ActiveX Controls for Measurement and SCADA/HMI Vista support |
| DAQBench Simplified Chinese V2.42 | V2.42,ActiveX Controls for Measurement and SCADA/HMI |
| DAQBench Traditional Chinese V2.42 | V2.42,ActiveX Controls for Measurement and SCADA/HMI |
| PCI-OCX V4.22 | V4.22,ActiveX Controls for ADLINK PCI/PCI Express(R)/cPCI Series Data Acquisition Cards |
| DAQ-LVIEW PnP V1.29 | V1.29,LabVIEW™ Interface for all ADLINK PCI/PCI Express(R)/cPCI Series Data Acquisition Cards |
| PCIS-VEE V3.21 | V3.21,VEE ™ Interface for ADLINK PCI/cPCI Series Data Acquisition Cards |
| DAQ-MTLB V1.10 | V1.10,MATLAB Data Acquisition Toolbox Adapter for ADLINK DAQ Cards |
| DAQCreator Evaluation V1.0 | Smart & Easy-to-Use Data Acquisition System Creator |
| DAQMaster V1.2 | DAQMaster Version 1.2 (to manage ADLINK devices and DAQPilot tasks) |
