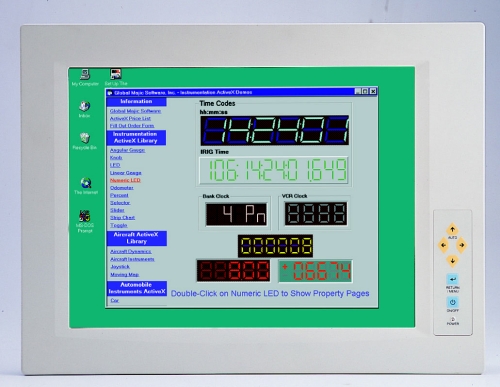

DM-121/DM-150 12,1/15" Panel/Rack TFT Industrial LCD
| LCD size | 12.1”TFT |
| Panel type | TOSHIBA-LTD121C30S |
| LCD Interface | Analog VGA Input |
| Max.resolution | 800X600 |
| Brightness | 350 cd/m² |
| LCD color | 262K |
| Pixel pitch(mm) | 0.3075 x 0.3075mm |
| Contrast ratio | 250:1 (Typ.) |
| View angle (H)x(V) | 120(H) x 90(V) |
| LCD MTBF | 50,000hrs |
| Backlight MTBF | 25,000hrs |
| Contruction front panel | Plastic/Aluminum |
| Construction chassis | Aluminum |
| OSD control key | YES |
| Power Adapter | 45W |
| Mounting | Wall/Panel/RACK/ARM mount |
| Color | White |
| Dimension(WxDxH) mm | 340x53x260 |
| Front panel protection | meet IP-65 |
| Operation Temperature | 0~50ºC |
| Touch Screen | T-R121B (12.1” Resistive type) |
