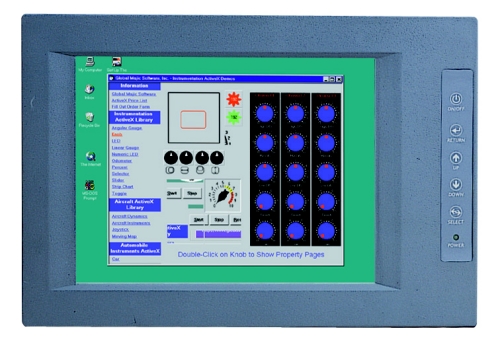

DM-64T/DM-84T/DM-104 6,4/8,4/10,4" TFT Industrial LCD
- Industrial panel mount displays with touchscreens
| LCD size | 6.4” / 8,4" / 10,4" TFT LCD |
| Option | resistive touchscreen |
| LCD Interface | Analog VGA Input |
| Max.resolution | 640x480 / 800x600 / 800x600 |
| Brightness | 300 / 250 / 230 cd/m² |
| LCD color | 262K |
| Pixel pitch(mm) | 0.203 x 0.203 / 0.213 x 0.213 / 0.264x0.264 mm |
| Contrast ratio | 120:1 / 200:1 / 250:1 (Typ.) |
| View angle (H)x(V) | 170(H) x 30(V) |
| LCD MTBF | 50,000hrs |
| Backlight MTBF | 25,000hrs |
| Contruction front panel | Plastic / Heavy-duty steel / Heavy-duty steel |
| Construction chassis | Aluminum / Heavy-duty steel / Heavy-duty steel |
| OSD control key | YES |
| Power Adapter | N/A, 45W |
| Mounting | Panel mount |
| Color | Dark Blue |
| Dimension(WxDxH) mm | 203x70x139 / 229x75x172 / 312x55x24 |
| Front panel protection | N/A / IP65 |
| Operation Temperature | 0~50ºC |
DM_SRM.pdf (1390kB)
