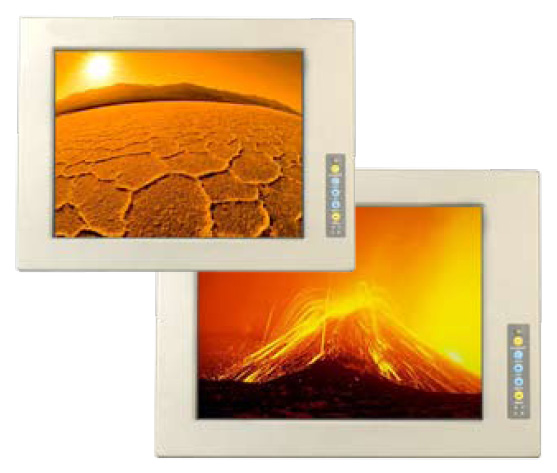

SRM-121/150GMS 12.1"/15" Sunlight Readable TFT LCD Monitor
- 800 and 1000nits super high brightness
- 12.1” Anti-Reflection Technology
- Nature Color Matrix (NCM) Technology
-

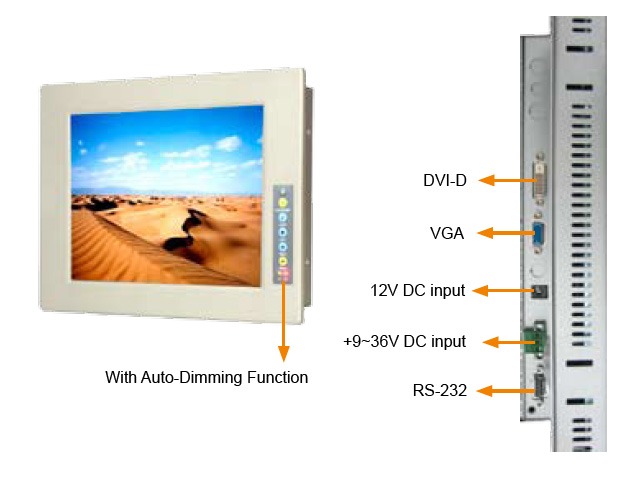

Innovative auto-dimming function
-
Wide Operating Temperature: -10oC~+60oC
-
IP 65 Compliant
| Model |
SRM-121GS |
SRM-150GS | |||||||||
| LCD Size |
12.1” |
15” | |||||||||
| Resolution (H x V) |
800 x 600 (SVGA) |
1024 x 768(XGA) | |||||||||
| Luminance (cd/m2) |
1000 |
800 | |||||||||
| Contrast Ratio |
700:1 |
600:1 | |||||||||
| Display Color |
262k |
262k | |||||||||
| View Angle (H/V) | 45°/75°/60°/60° | 65°/50°/75°/75° | |||||||||
| Pixel Pitch (mm) |
0.3075 |
0.297 | |||||||||
| Operating Temperature |
-10°C ~ +60°C | ||||||||||
| Storage Temperature |
-20°C ~ +70°C | ||||||||||
| Lamp Life Time |
50000hrs | ||||||||||
| Input Interface |
Analog VGA , DVI-D | ||||||||||
| Front Frame |
Aluminum | ||||||||||
| Chassis |
Heavy-duty Steel | ||||||||||
| OSD Function |
Yes | ||||||||||
| Power Input |
+12VDC/+ 9 ~ +36VDC(optional) | ||||||||||
| Mounting |
Wall/Panel/Rack/Arm/Stand | ||||||||||
| Front Panel Protection |
IP65 Compliant | ||||||||||
|
Nett Weight |
3.3kgs |
6kgs | |||||||||
| Dimension (WxHxD) (mm) | 340 x 260 x 58 | 410 x 309 x 65.2 | |||||||||
SRM.pdf (526kB)
