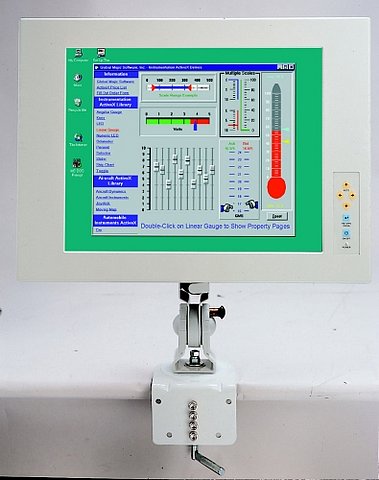

DM-170/DM-190 17/19" TFT Panel/Rack Industrial LCD
| LCD size | 17”TFT |
| Panel type | AUO-M150XN05 |
| LCD Interface | Analog VGA Input |
| Max.resolution | 1028x1024 |
| Brightness | 260 cd/m² |
| LCD color | 16.7M |
| Pixel pitch(mm) | 0.264 x 0.264mm |
| Contrast ratio | 450:1 (Typ.) |
| View angle (H)x(V) | 160(H) x 160(V) |
| LCD MTBF | 50,000hrs |
| Backlight MTBF | 25,000hrs |
| Contruction front panel | Plastic/Aluminum |
| Construction chassis | Aluminum |
| OSD control key | YES |
| Power Adapter | 60W |
| Mounting | Wall/Panel/RACK/ARM/STAND mount |
| Color | White |
| Dimension(WxDxH) mm | 452x61x356 |
| Front panel protection | meets IP65 |
| Operation Temperature | 0~50ºC |
| Touch Screen | T-R170B 17” Resistive type) |
DM_SRM.pdf (1390kB)
